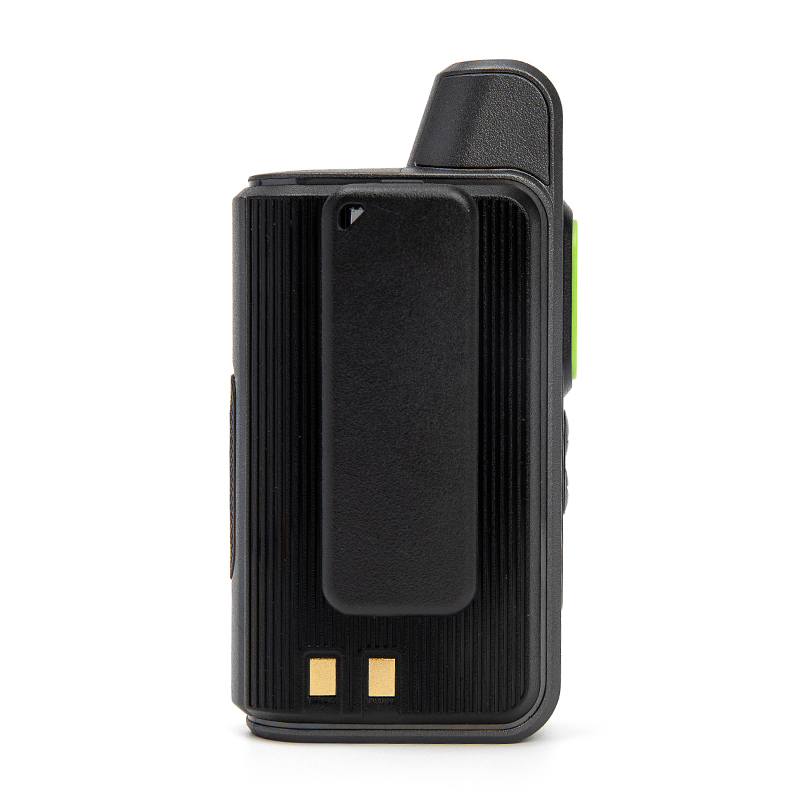

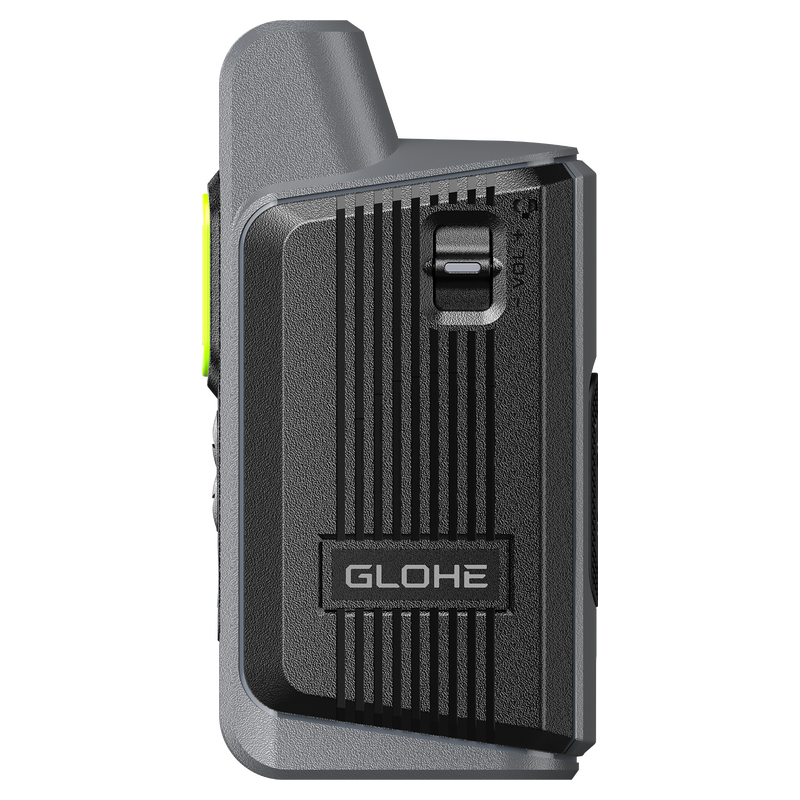

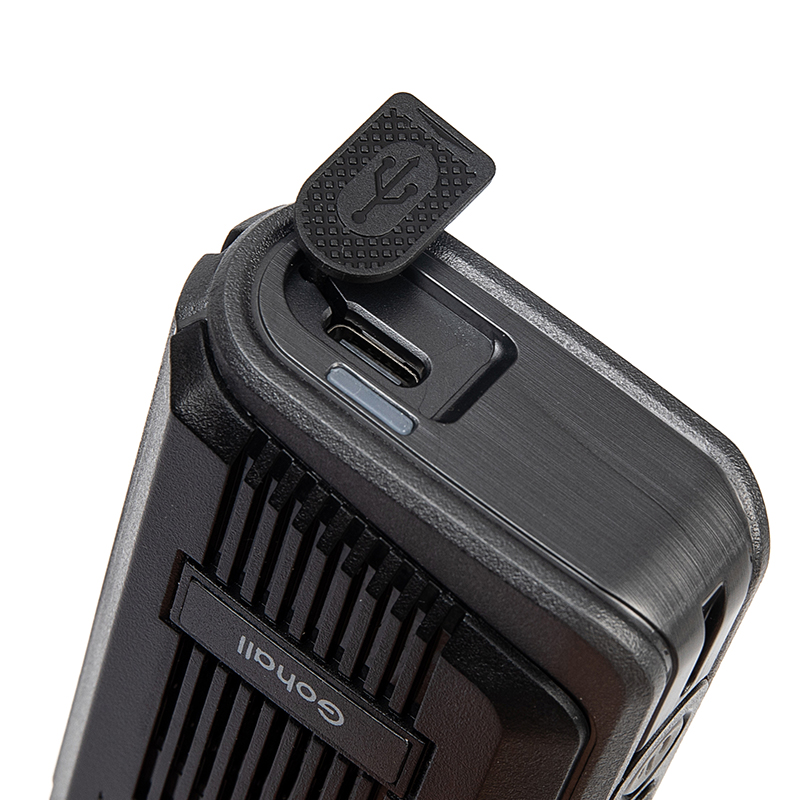

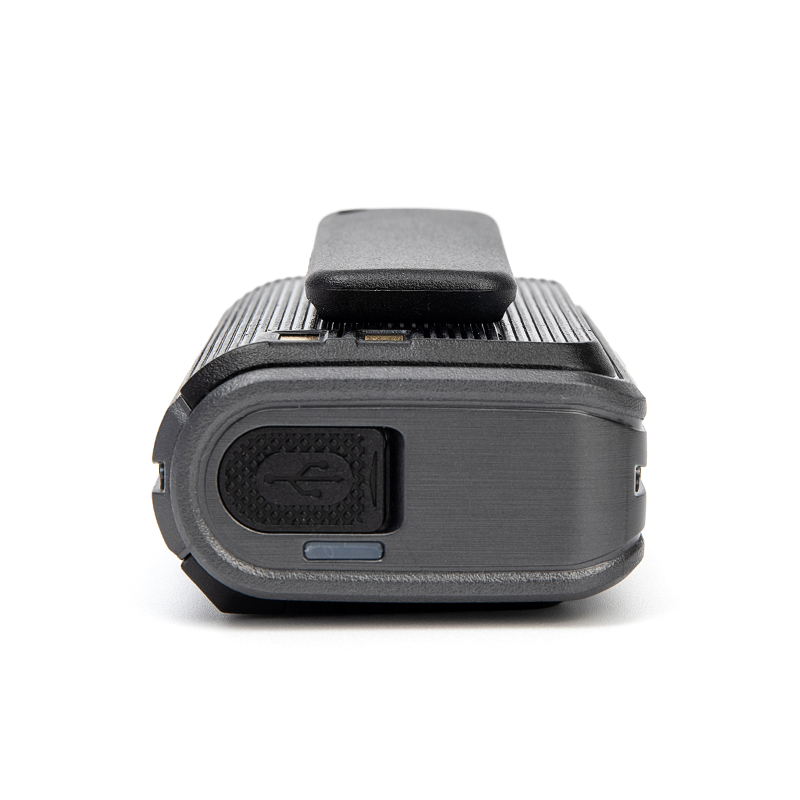

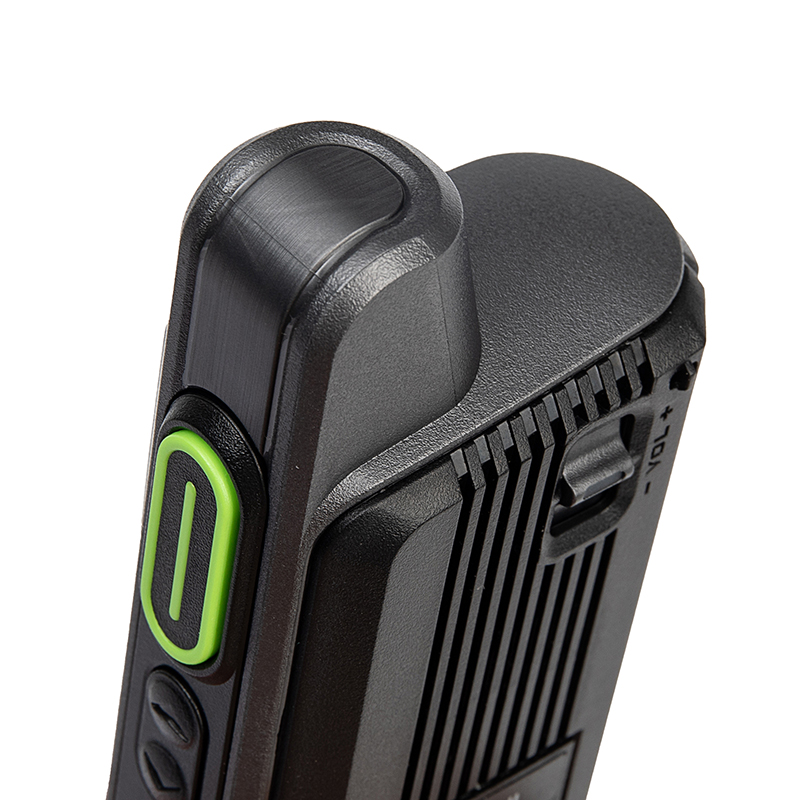

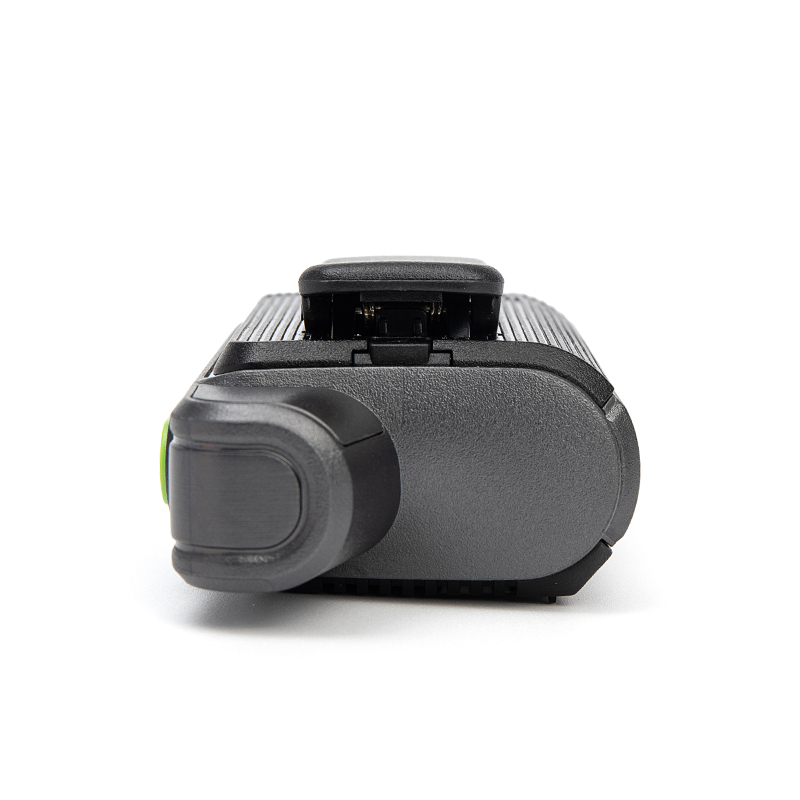

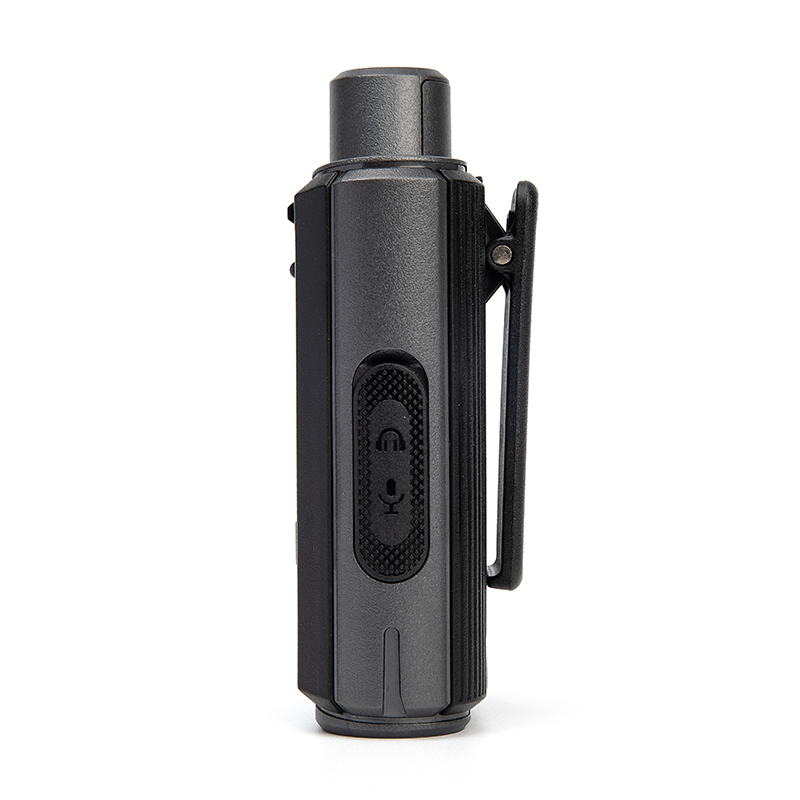

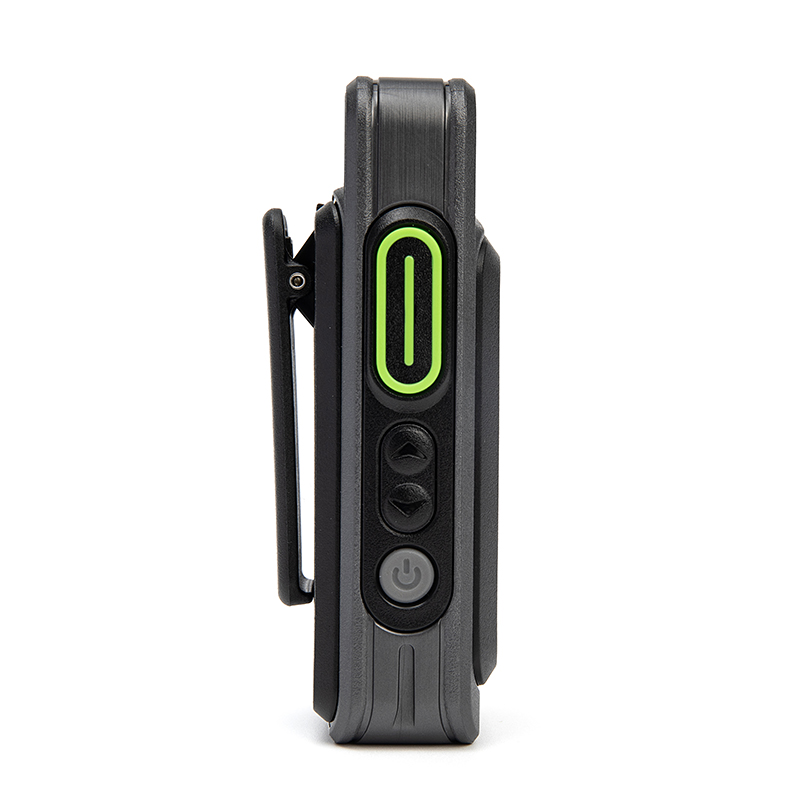

The A-203 is a professional analog FRS/PMR two-way radio designed for business users who require reliable communication. Equipped with a 2000mAh battery, Type-C charging and frequency hopping technology, it provides efficient communication for security, hospitality and commercial operations.
| A-203 Technical Specification | |||
| Product Parameters | |||
| General | |||
| Type | A-203 | ||
| Equipment Name | Handheld FM Walkie Talkies | ||
| Channel Capacity | 16 | ||
| Channel Spacing | 25KHz/12.5KHz | ||
| Working Voltage | DC4.2V | ||
| Frequency Range | 400-520MHz | ||
| Battery | Lithium Battery 2000mA | ||
| Charging Method | Type-C(Seat-charger Optional) | ||
| Antenna Impedance | 50Ω | ||
| Operating Temperature | -20℃ ~ +50℃ | ||
| Weight | 147g | ||
| Size: Length*Width*Thickness(mm) | 90*54*30 (Without Antenna) | ||
| Frequency Modulation | FM | ||
| Receiver | |||
| Frequency Stability | +/-2.5ppm | Rated Audio Power | 500mW |
| Reference Sensitivity | Better than -119dBm | SNR | ≥40dB |
| Audio Distortion | ≤5% | ||
| Adjacent Channel Selectivity(ACS) | ≥65dB | Co-channel Rejection | ≥-8 dB |
| Audio Response | ≤+2dB & ≥-10dB | ||
| Transmitter | |||
| Transmitting Power | ≤2W | Frequency Stability | +/-2.5ppm |
| Transmitting SNR | ≥45dB | Maximum Frequency Offset | ≤5KHz |
| Emit Spurious Radiation | ≤7.5uW | Modulation Characteristic | +1dB ~ -3dB |
| Adjacent Channel Power | ≤-65dB | Modulation Distortion | ≤5% |
| Main Function | |||
| Power Beep | |||
| 16 Channels | |||
| Power Saving | |||
| V0X | |||
| Scan | |||
| Low Voltage Alert | |||
| Launch Time Limit | |||
| Squelch Level Setting | |||
| Scrambler | |||
| Compandor | |||
| Frequency-hopping To Prevent Frequency Crosstalk | |||
| Non-standard QT/DQT | |||
| SK1 Side Key Short Press On Volume + | |||
| SK2 Side Key Short Press On Volume – | |||
| QT/DQT | |||
| TOT | |||
| PC Material | |||
| Code Switch | |||
| Type-C/Dual Seat-charger (Optional) |
1 × Portable radio
1 × Antenna
1 × Li-ion battery pack
1 ×usb charger
1 ×Belt clip
1 ×The sling
