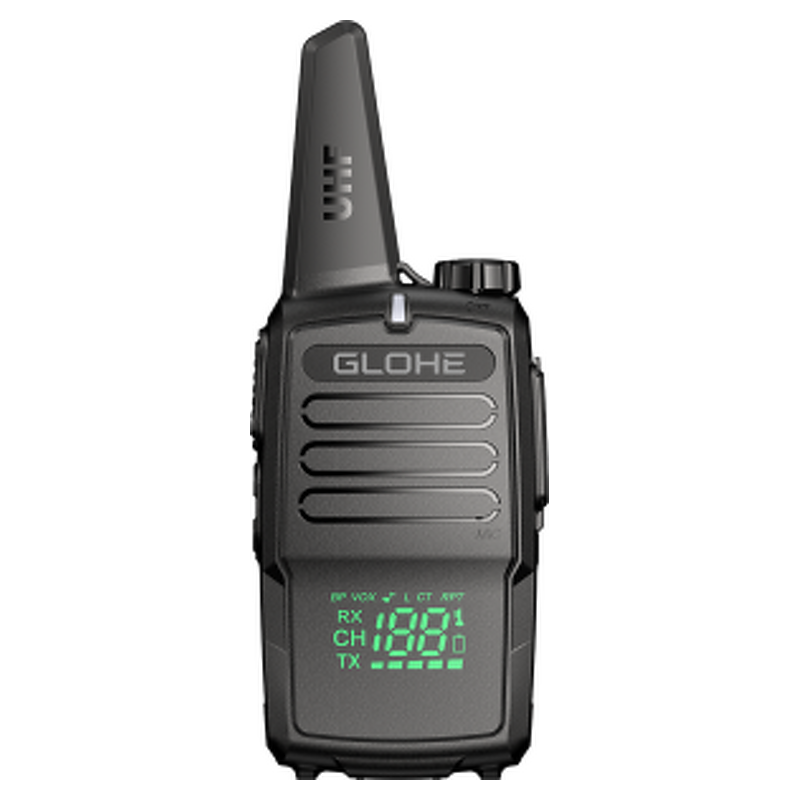

The A-207H is a professional analog two-way radio designed for organizations that require secure, reliable and flexible communication. Featuring 128 channels, DSP encryption and powerful audio output, it supports efficient communication across multiple teams and operational departments.
| A-207H Technical Specification | |||
| Product Parameters | |||
| General | |||
| Type | A-207H | ||
| Equipment Name | Handheld FM Walkie Talkies | ||
| Channel Capacity | 128 | ||
| Channel Spacing | 25kHz/12.5KHz | ||
| Working Voltage | DC7.5V | ||
| Frequency Range | 400-520MHz | ||
| Battery | Lithium Battery | ||
| Antenna Impedance | 50Ω | ||
| Operating Temperature | -20℃ ~ +50℃ | ||
| Weight | 140g | ||
| Size: Length*Width*Thickness(mm) | 120*57*30(Without Antenna) | ||
| Frequency Modulation | FM | ||
| Receiver | |||
| Frequency Stability | +/-2.5ppm | Rated Audio Power | 1000mW |
| Reference Sensitivity | Better than-121dBm | SNR | ≥40dB |
| Audio Distortion | ≤5% | ||
| Adjacent Channel Selectivity(ACS) | ≥65dB | Co-channel Rejection | ≥-8 dB |
| Audio Response | ≤+2dB & ≥-10dB | Inter Modulation | ≥50 dB |
| Transmitter | |||
| Transmitting Power | ≤2W | Frequency Stability | +/-1.5ppm |
| Transmitting SNR | ≥40dB | Maximum Frequency Offset | ≤5KHz |
| Emit Spurious Radiation | ≤7.5uW | Modulation Characteristic | +1dB ~ -3dB |
| Adjacent Channel Power | ≤-65dB | Modulation Distortion | ≤5% |
| Main Function | |||
| Power Beep | |||
| 128 Channels | |||
| Busy Channel Lockout | |||
| Power Saving | |||
| VOX | |||
| Scan | |||
| Low Voltage Alert | |||
| Launch Time Limit | |||
| Squelch Level Setting | |||
| Scrambler | |||
| Compandor | |||
| DSP Encryption Function (Frequency Hopping) | |||
| Non-standard QT/DQT | |||
| SK1/SK2 Customization | |||
| QT/DQT |
1 × Portable radio
1 × Antenna
1 × Li-ion battery pack
1 ×usb charger
1 ×Belt clip
1 ×The sling
Custom logo printing, private labeling, customized packaging, firmware development and OEM/ODM communication solutions are available for distributors and system integrators worldwide.
Custom product development with your branding, specifications, and packaging requirements.
Advanced digital encryption, noise cancellation, and energy-efficient radio technology.
Dedicated after-sales support with technical consultation and warranty service worldwide.
