Public Network |
|||||||

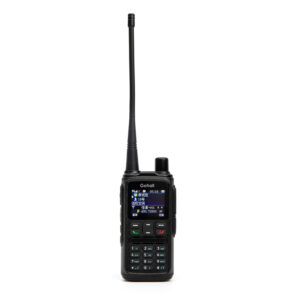

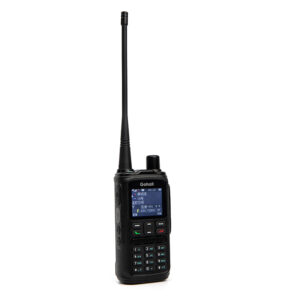

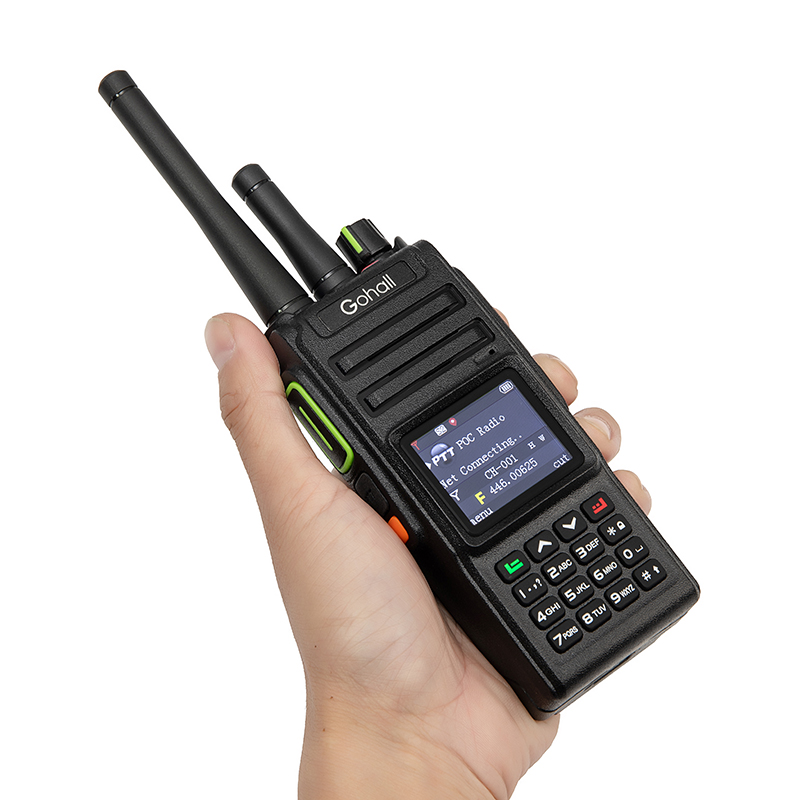

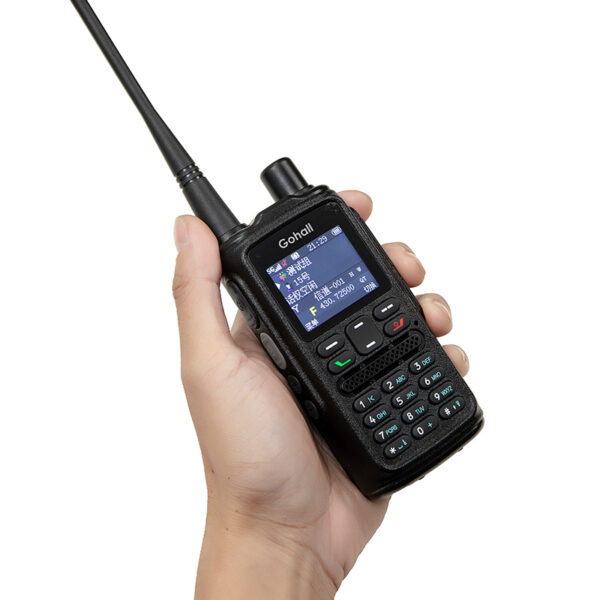

| Equipment Name | AP200C | ||||||
| Working Voltage | DC：3.7V | ||||||
| Network System
|
LTE-FDD/LTE-TDD | ||||||
| Frequency Range CAT.1 | LTE(FDD): 1/2/3/4/5/7/8/12/13/17
LTE(TDD):34/38/39/40/41 |
||||||
| Maximum Transmit Power | 1、TDD-LTE:Power Class 3(23+/-2dBm)
2、FDD-LTE:Power Class 3(23+/-2dBm) |
||||||
|
Standard Power Consumption
|
Standby Current：80-120mA@RX-75dBm for LTE | ||||||
| Average Operating Current：220mA@RX-75dBm for LTE | |||||||
| Max Current：800mA@RX-104dBm | |||||||
| Receiving Sensitivity | LTE-FDD/LTE-TDD:-94dBm(10M) | ||||||
| Battery | Polymer Lithium Battery 4000mAh | ||||||

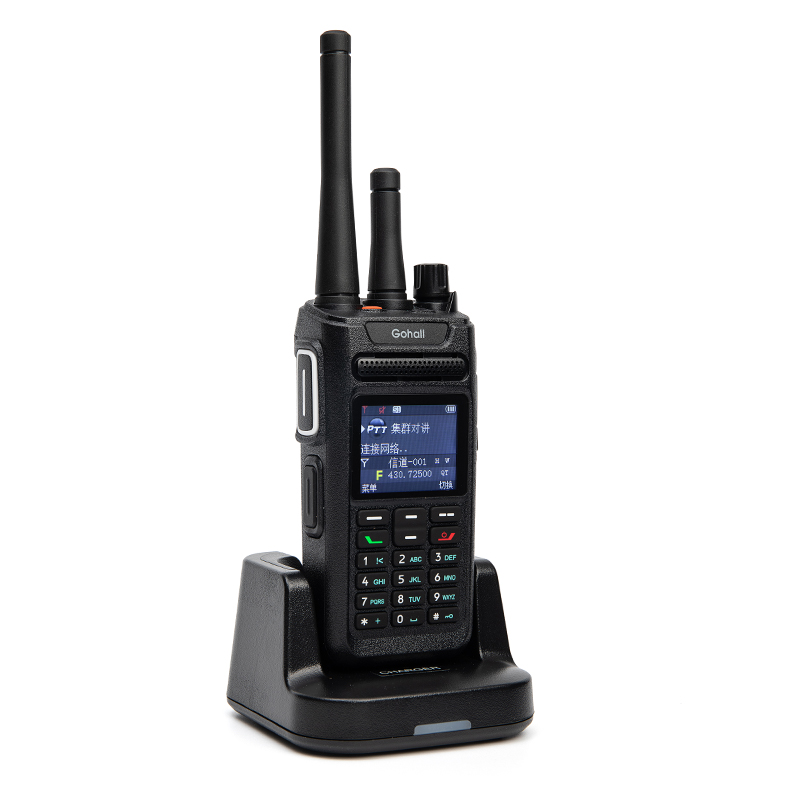

| Charge Mode | USB TYPE-C Direct Charger/Seat Charger (Optional) | ||||||
| Antenna | External Dual Mode Antenna | ||||||
| Operating Temperature | -20℃ ~ +50℃ | ||||||
| Weight | 210g | ||||||
| Size: Length*Width*Thickness(mm) | 110x58x38(Without Antenna) | ||||||
| SIM Card | SIM1：Nano Card; SIM2：Nano Card | ||||||
|
Analog |
|||||||
| Channel Capacity | 128 | ||||||
| Channel Spacing | 25kHz/12.5KHz | ||||||
| Working Voltage | DC7.5V | ||||||
| Frequency Range | 400-470MHz | ||||||
| Antenna Impedance | 50Ω | ||||||
| Operating Temperature | -20℃ ~ +50℃ | ||||||
| Frequency Modulation | FM | ||||||
|
Receiver |
|||||||
| Frequency Stability | +/-2.5ppm | Rated Audio Power | 1000mW | ||||
| Reference Sensitivity | Better than -121dBm | SNR | ≥45dB | ||||
| Audio Distortion | ≤5% | ||||||
| Adjacent Channel Selectivity(ACS) | ≥65dB | Co-channel Rejection | ≥-8 dB | ||||
| Audio Response | ≤+2dB & ≥-10dB | ||||||
|
Transmitter |
|||||||
| Transmitting Power | ≤3W | Frequency Stability | +/-2.5ppm | ||||
| Transmitting SNR
|
≥40dB | Maximum Frequency Offset | ≤5KHz | ||||
| Emit Spurious Radiation | ≤7.5uW | Modulation Characteristic | +1dB ~ -3dB | ||||
| Adjacent Channel Power | ≤-65dB | Modulation Distortion | ≤5% | ||||
Main Function
|
POC |
Analog |
| 1.7-inch Color Screen + 20 Operating Buttons
|
Supports One-Button Frequency Pairing |
| Polymer Lithium Battery | Multi-Function Keypad Operation (20) |
| GPS(Optional) | Wide/Narrow Band Switching |
| Numeric Numbering Single Call Selection | High /Low Power Switching |
| Multi-group Listening | Hand-Tuned Frequency |
| Multi-member Single Call | Scan |
| Local Platform Upgrade | Squelch Level Setting |
| Dialing Function | Support Voice Broadcasting |
| SOS | Power Saving |
| Intercom Prompt Sound Switch | QT/DQT |
| Key Lock | Receive Priority Setting |
| Battery Level Display/Low Battery Alert | Transit Mode (Analog To Public, Public To Analog) |
| Chime On Every Hour | Operating Modes: Channel/Frequency/Record Mode |
| Direct keypad Numeric Shortcut Single Call | Hand-tuned QT/DQT |
| Platform System:REALPTT | Frequency Offset |
| Flashlight Function | Frequency Deviation |
| Channel Name Edit | |
| Channel Storage 128 Channels | |
| Launch Time Limit |
