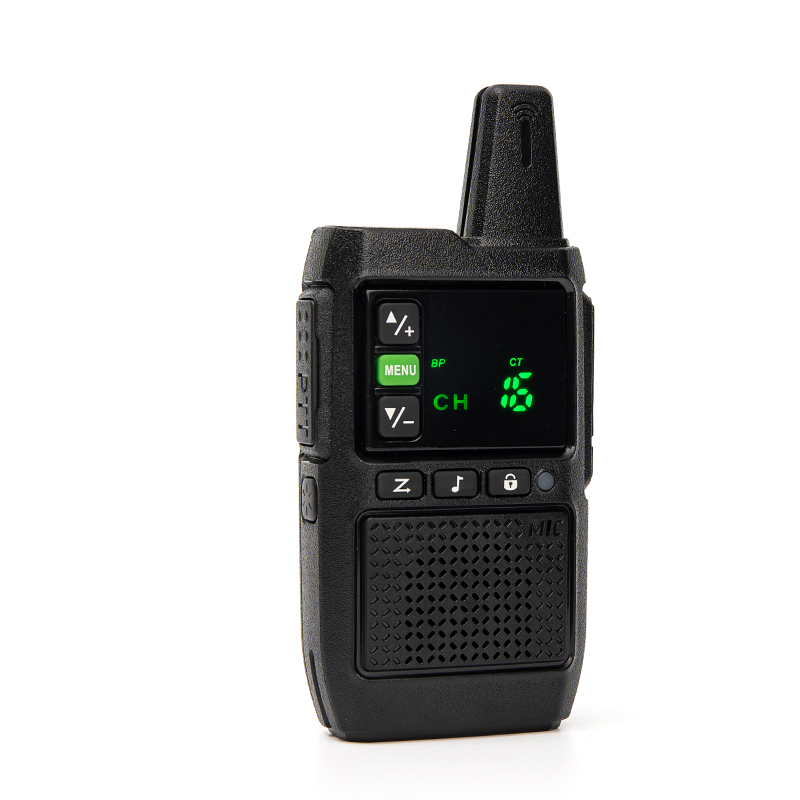

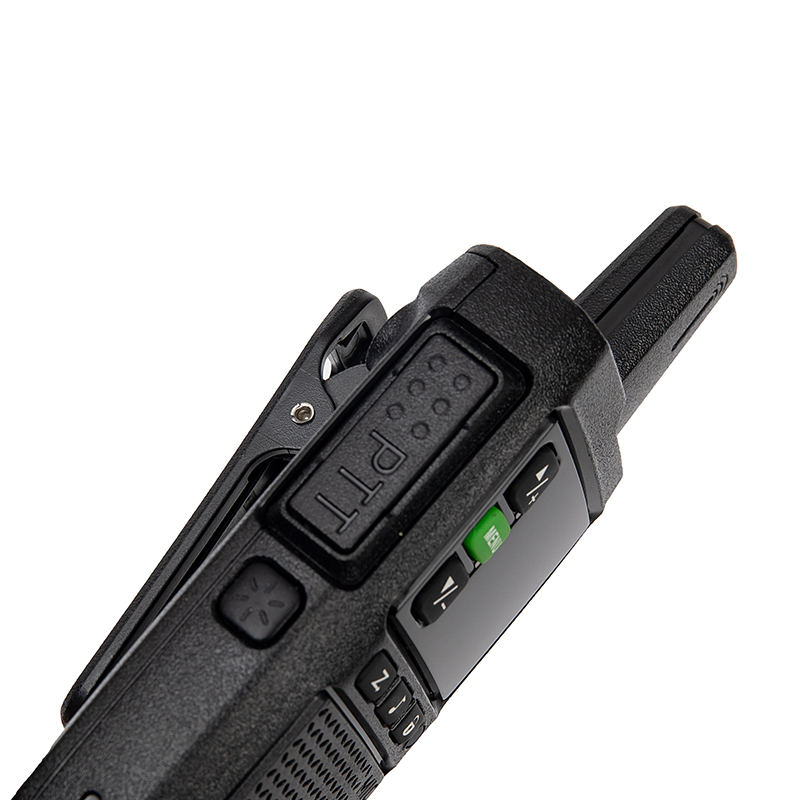

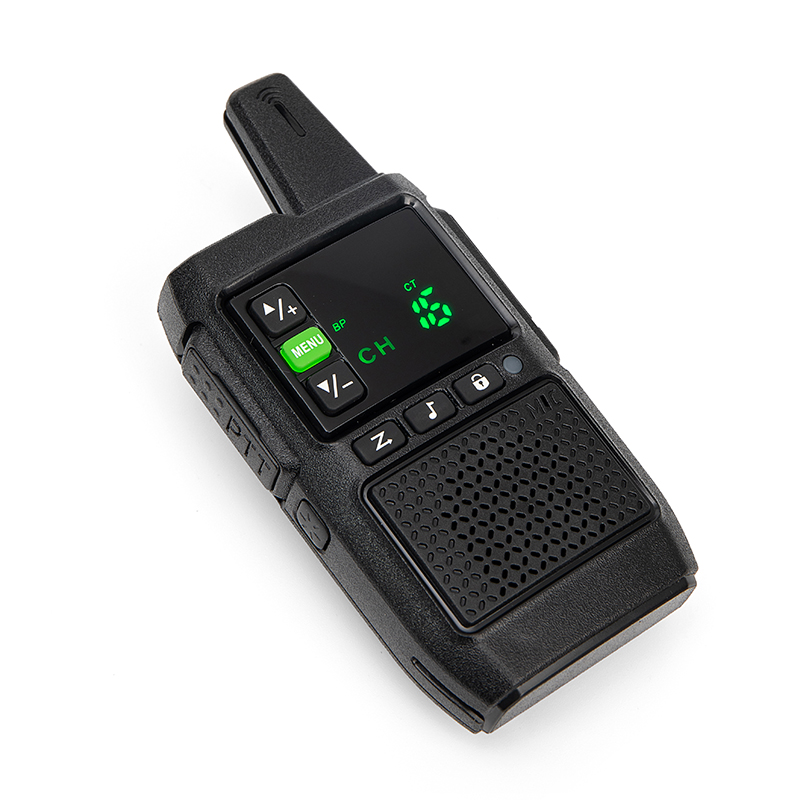

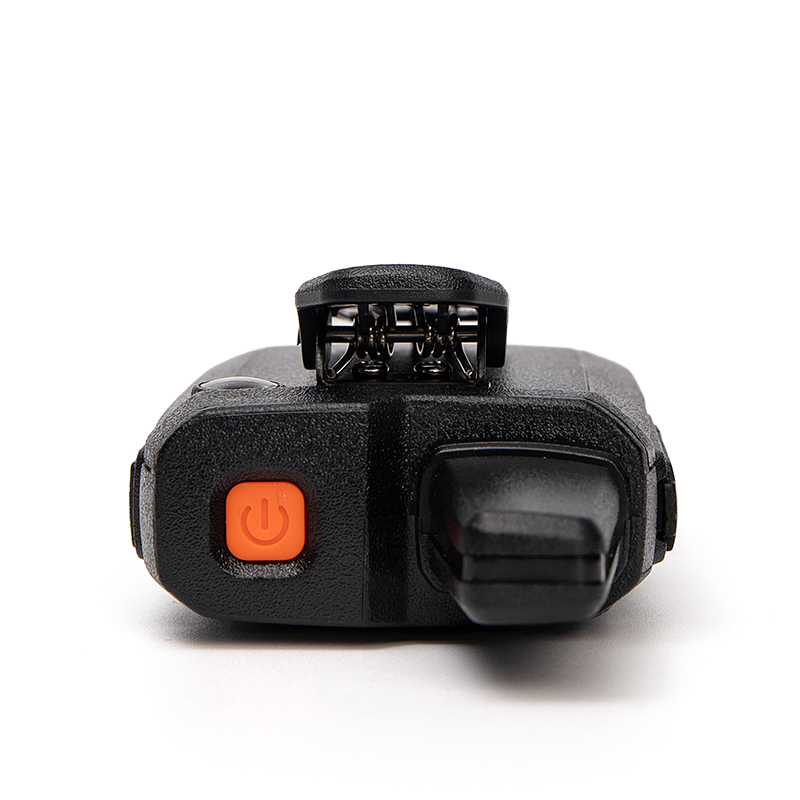

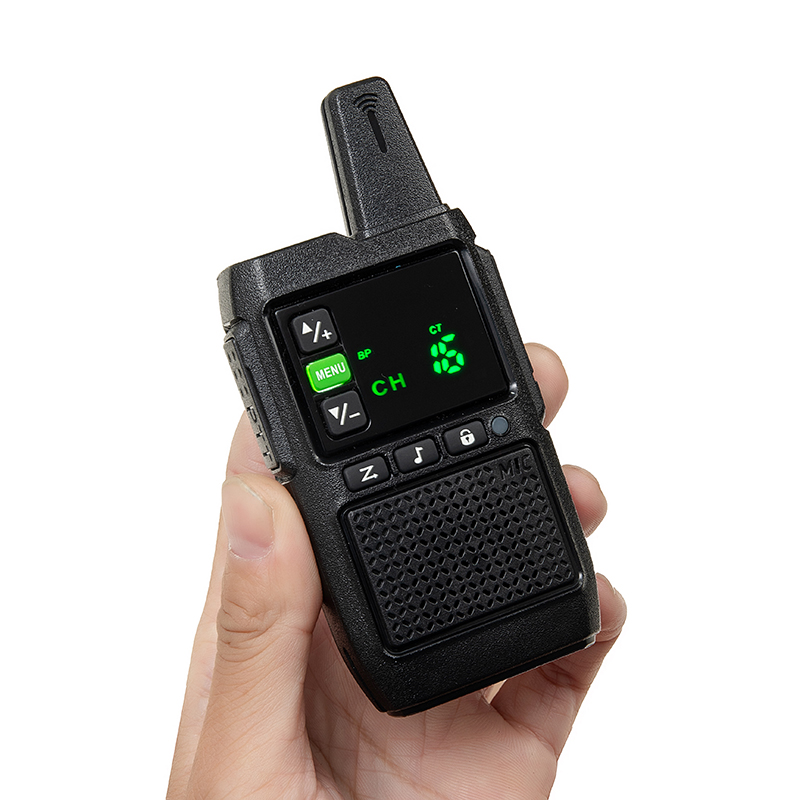

The A-202HF is a compact analog two-way radio designed for professional business communication. Featuring 128 channels, VOX operation, DSP encryption and scanning functions, it offers flexible and secure communication for multi-department operations and commercial environments.
The A-202HF is a lightweight handheld analog walkie talkie developed for organizations that require efficient team coordination across multiple departments. With support for up to 128 channels, users can easily organize communication groups for different teams and operational scenarios.
Its compact design, clear audio performance and privacy-enhancing encryption functions make it an ideal solution for commercial and service industries.
| General | |||
| Type | A-202HF | ||
| Equipment Name | Handheld FM Walkie Talkies | ||
| Channel Capacity | 128 | ||
| Channel Spacing | 25KHz/12.5KHz | ||
| Working Voltage | DC4.2V | ||
| Frequency Range | 400-520MHz | ||
| Battery | Lithium Battery | ||
| Antenna Impedance | 50Ω | ||
| Operating Temperature | -20℃ ~ +50℃ | ||
| Weight | 95g | ||
| Size: Length*Width*Thickness(mm) | 90*52*21(Without Antenna) | ||
| Frequency Modulation | FM | ||
| Receiver | |||
| Frequency Stability | +/-2.5ppm | Rated Audio Power | 500mW |
| Reference Sensitivity | Better Than -119dBm | SNR | ≥40dB |
| Audio Distortion | ≤5% | ||
| Adjacent Channel Selectivity(ACS) | ≥65dB | Co-channel Rejection | ≥-8 dB |
| Audio Response | ≤+2dB & ≥-10dB | Inter Modulation | ≥50 dB |
| Transmitter | |||
| Transmitting Power | Low Power 0.5W | Frequency Stability | +/-2.5ppm |
| Transmitting SNR | ≥40dB | Maximum Frequency Offset | ≤5KHz |
| Emit Spurious Radiation | ≤7.5uW | Modulation Characteristic | +1dB ~ -3dB |
| Adjacent Channel Power | ≤-65dB | Modulation Distortion | ≤5% |
| Main Function | |||
| Power Beep | |||
| 128 Channels | |||
| Power Saving | |||
| V0X | |||
| Scan | |||
| Low Voltage Alert | |||
| Squelch Level Setting | |||
| Key Tone Setting | |||
| End Tone Setting | |||
| QT/DQT | |||
| 10 Ring Tone Settings | |||
| Compandor/Scrambler/DSP Encryption |

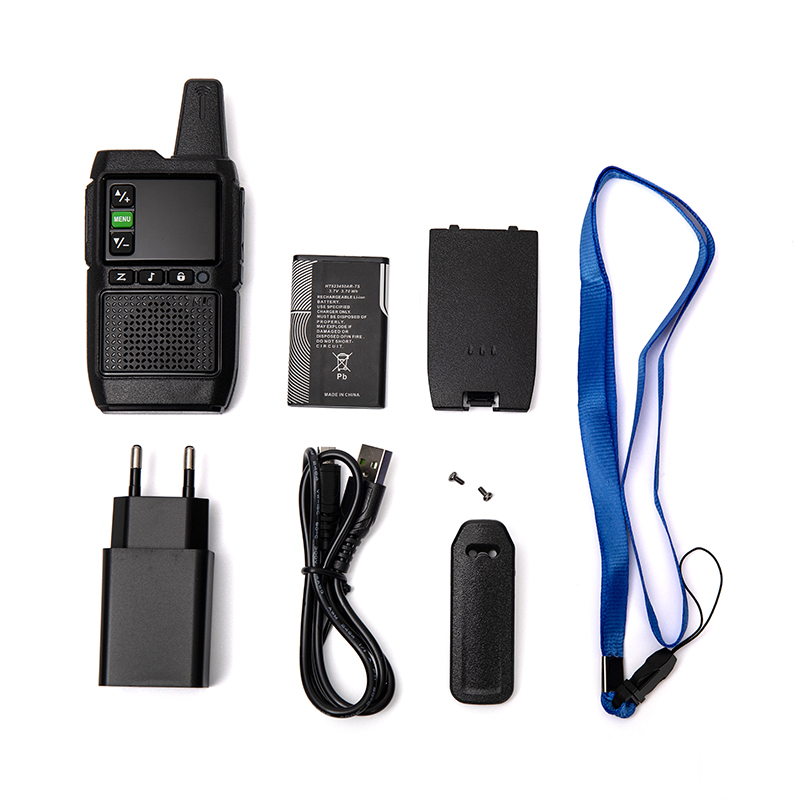

1 × Portable radio
1 × Antenna
1 ×Li-ion battery pack
1 × Usb charger
1 ×Belt clip
1 ×The sling
Custom logo printing, private labeling, customized packaging, firmware development and OEM/ODM communication solutions are available for distributors and system integrators worldwide.
Custom product development with your branding, specifications, and packaging requirements.
Advanced digital encryption, noise cancellation, and energy-efficient radio technology.
Dedicated after-sales support with technical consultation and warranty service worldwide.
