5 W UHF analog radio for demanding work sites.
The GLOHE A-504 offers 5 W / 1 W switchable power, 16 channels, voice prompts and frequency hopping for construction, security and industrial teams.

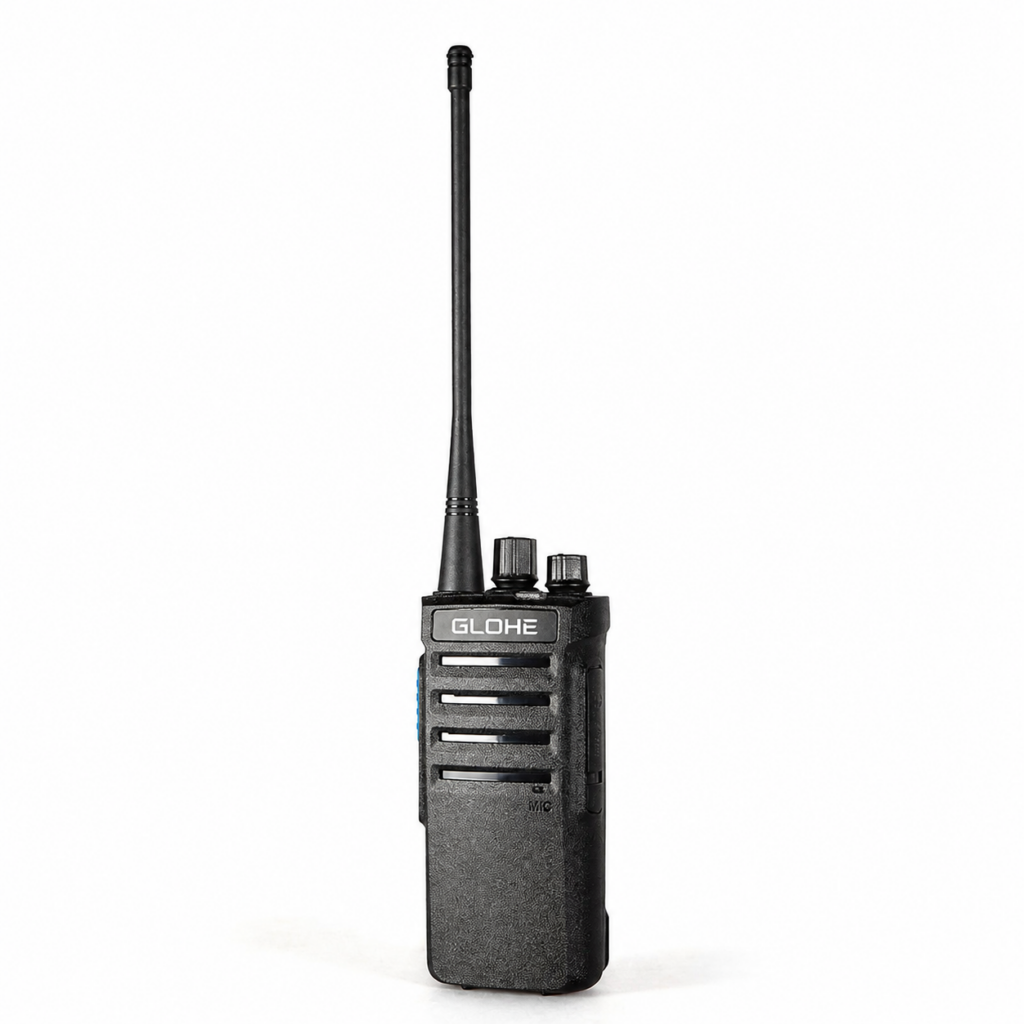

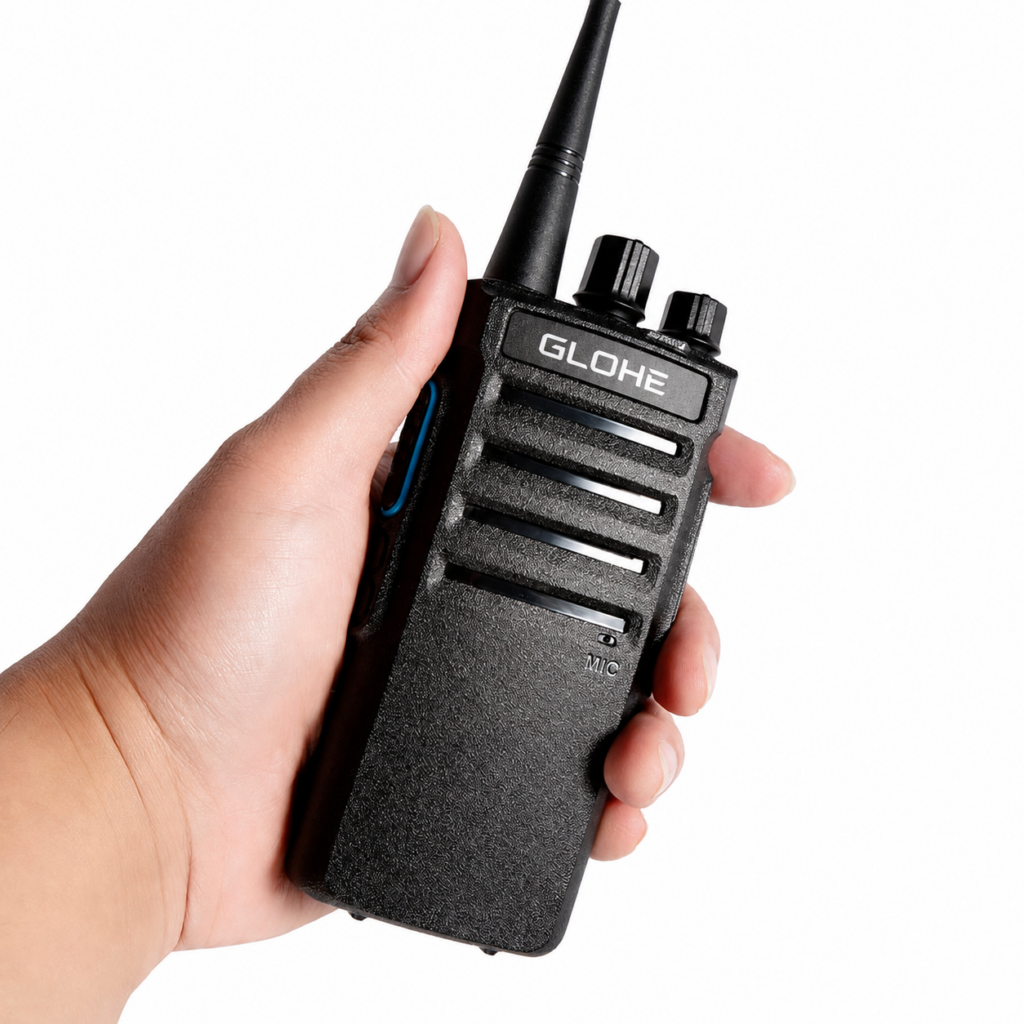

The GLOHE A-504 is a 5 W UHF analog radio with a 2000 mAh battery for teams that work long shifts on construction sites, factories and outdoor operations. Switchable 5 W / 1 W power and noise suppression keep communication clear.
Channel frequencies, power level and function settings are prepared according to the destination market and the agreed project plan before production.
A-504 at a glance
The A-504 is a practical choice for construction sites, factories, warehouses, security patrols, logistics yards and outdoor operations where staff need more range than a basic business radio.
Radio frequency and power rules differ by country. Before ordering, buyers should confirm the destination market so that the frequency plan, output power and supporting documents match the exact A-504 version supplied.
For distributor and project orders, GLOHE can discuss logo printing, private labeling, packaging, channel presets, function settings and accessory combinations. Confirm the target market and operating requirements before sampling.
Learn more about GLOHE OEM & ODM services.
The A-504 is a UHF radio covering 400–520 MHz. The final channel frequencies are programmed according to the destination market and the authorized product version.
Yes. Channel frequencies and supported settings such as QT/DQT, scan, VOX, squelch level and time-out timer can be prepared according to the agreed project plan.
Certification documents depend on the model version and destination market. Please share your target market so we can confirm the certificates available for the exact version you order.
Yes. Logo printing, private labeling, custom packaging and accessory combinations can be discussed for distributor and project orders.
| A-504 Technical Specification | |||
| Product Parameters | |||
| General | |||
| Model | A-504 | ||
| Device Name | Handheld Fm Walkie-Talkie | ||
| Channel Capacity | 16 | ||
| Channel Spacing | 25khz/12.5khz | ||
| Working Voltage | Dc7.4v | ||
| Frequency Range | 400-520mhz | ||
| Standard Battery | 2000mah Lithium Battery | ||
| Antenna Impedance | 50ω | ||
| Working Temperature | -20℃ ~ +50℃ | ||
| Weight | 265g | ||
| Dimensions: h (Length) x w (Width) x d (Height) (Mm) | 119*60*40 (Excluding The Antenna) | ||
| Frequency Modulation Method | Fm | ||
| Receiver | |||
| Frequency Stability | +/-2.5ppm | Rated Audio Power | 500mw |
| Reference Sensitivity | Better Than-119 Dbm | Received Signal-To-Noise Ratio | ≥40db |
| Reference Sensitivity | Better Than-119 Dbm | Audio Distortion | ≤5% |
| Neighboring Path Selectivity | ≥65db | Common Channel Suppression | ≥-8 Db |
| Acoustic Frequency Response | ≤+2db & ≥-10db | ||
| Transmitter | |||
| Transmitting Power | High Power: 5 w Low Power: 1 w | Frequency Stability | +/-2.5ppm |
| Transmission Signal-To-Noise Ratio | ≥40db | Maximum Frequency Offset | ≤5khz |
| Emitting Stray Radiation | ≤7.5uw | Modulating Characteristic | +1db ~ -3db |
| Neighboring Channel Power | ≤-65db | Modulation Distortion | ≤5% |
| Main Function | |||
| Boot Notification Sound | |||
| 16-Channel | |||
| Chinese And English Voice Narration | |||
| Power-Saving Feature | |||
| v0x Voice Control Feature | |||
| Scan Function | |||
| Low Voltage Alert | |||
| Release Time Limit | |||
| Noise Reduction Level Settings | |||
| Noise Suppression Function | |||
| Compression And Expansion Function | |||
| Frequency Hopping Feature Prevents Cracking | |||
| Non-Standard Analog Sub音频 (Qt)/Non-Standard Digital Subaudio (Dqt) | |||
| Sk1 Custom (Monitoring, Voice Control, Channel Announcement) | |||
| Sk2 Custom (Monitoring, Voice Control, Channel Announcement) | |||
| Simulated Subauditory (Qt)/Digital Subauditory (Dqt) | |||
| Timeout Timer (Tot) | |||
| One-Click Frequency Tuning |
1 × Portable radio
1 × Antenna
1 × Li-ion battery pack

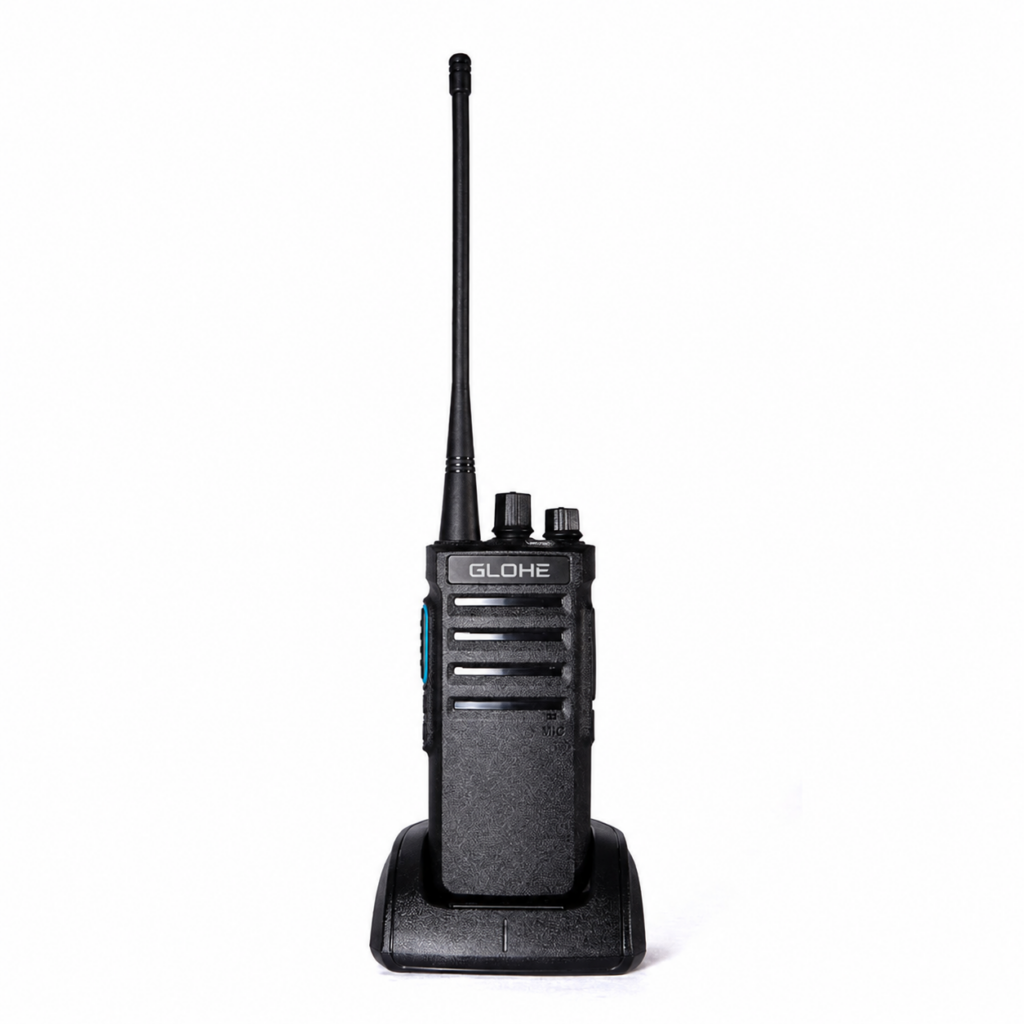

1 × Desktop Charger
1 ×Belt clip
1 ×The sling
