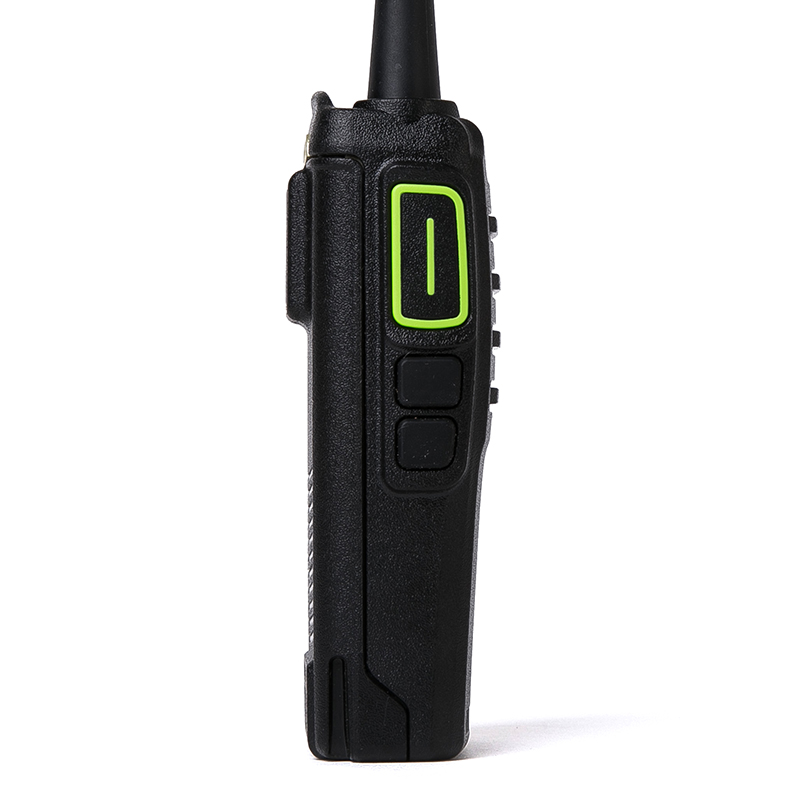

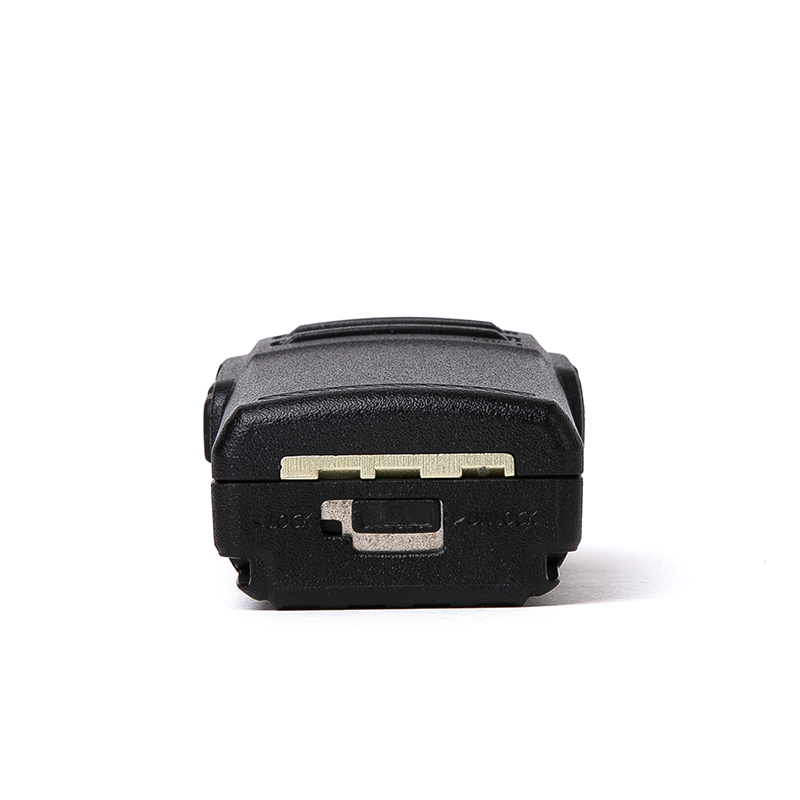

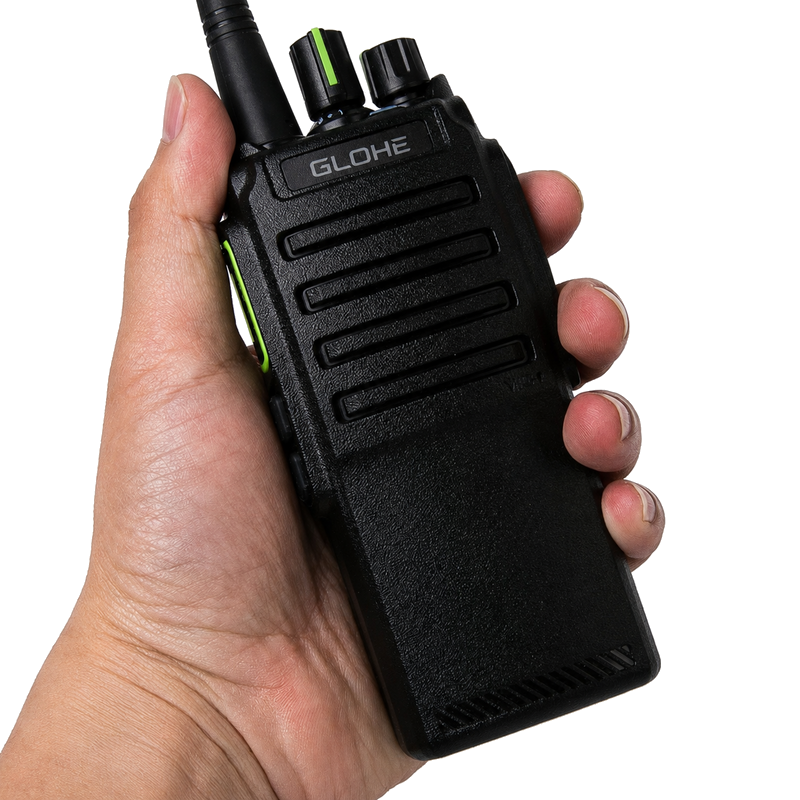

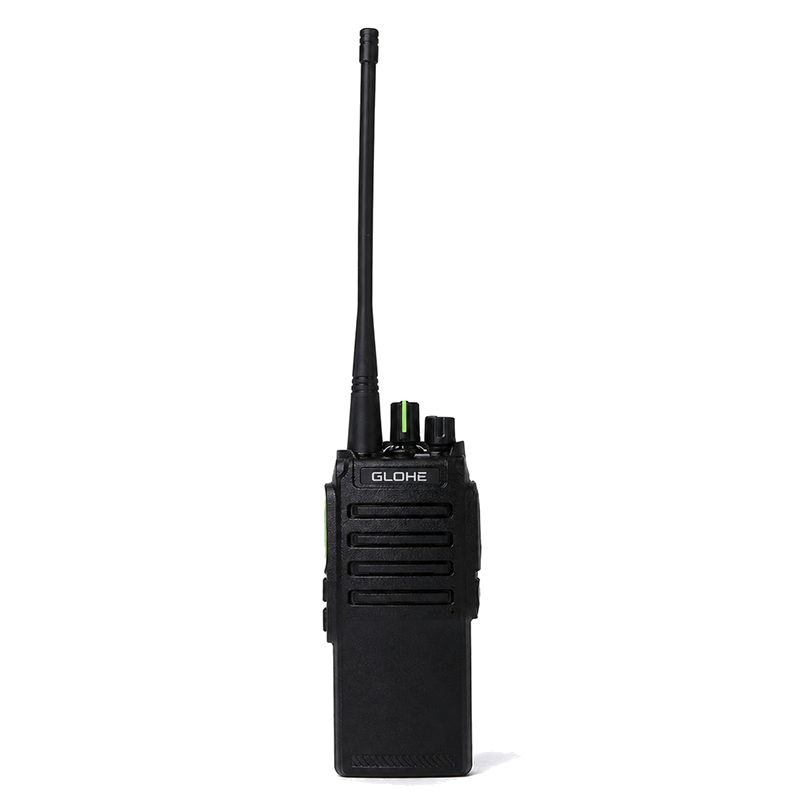

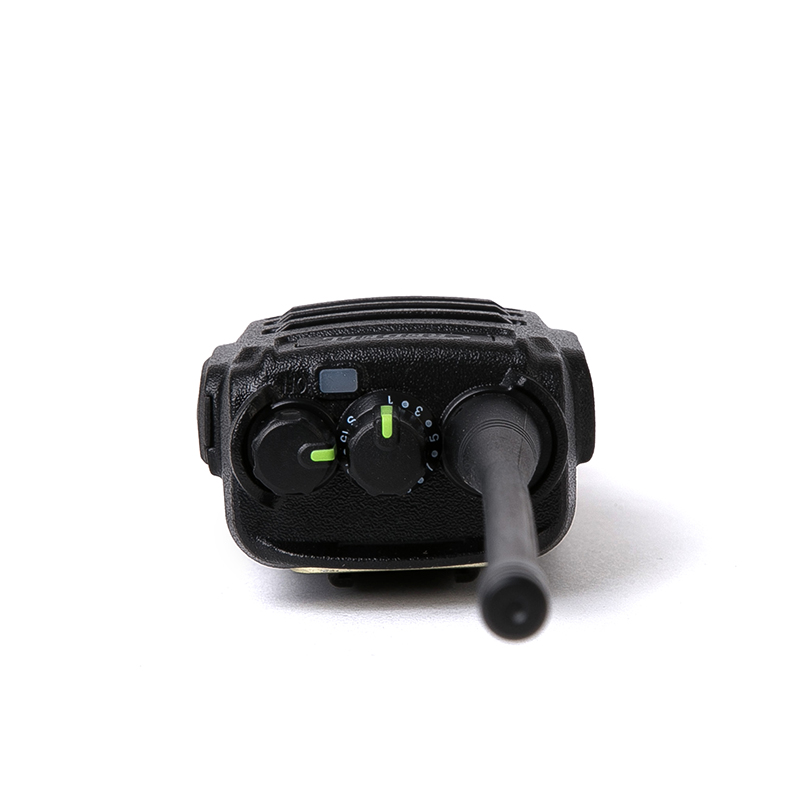

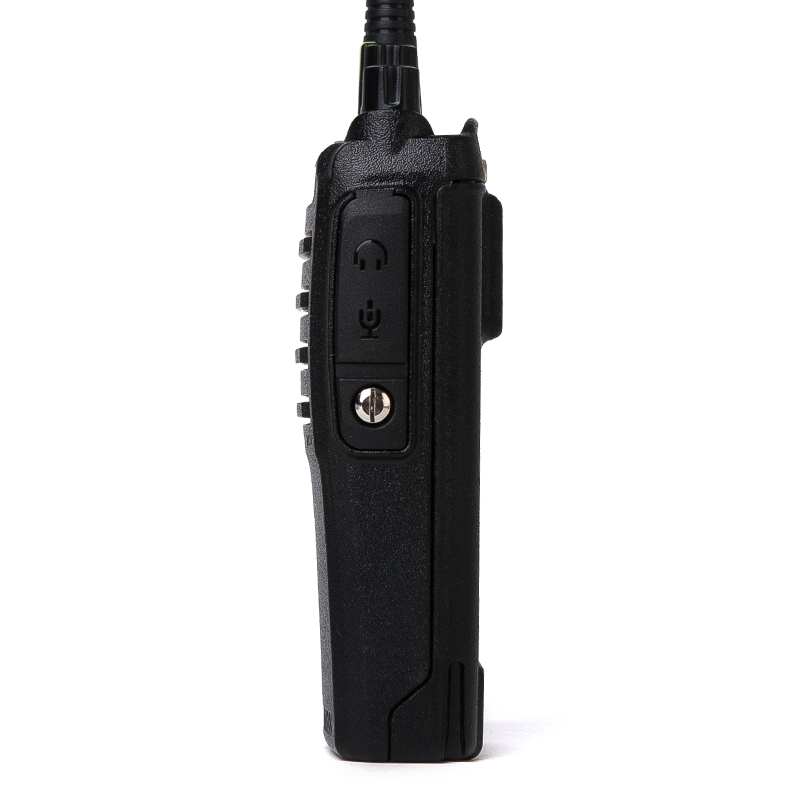

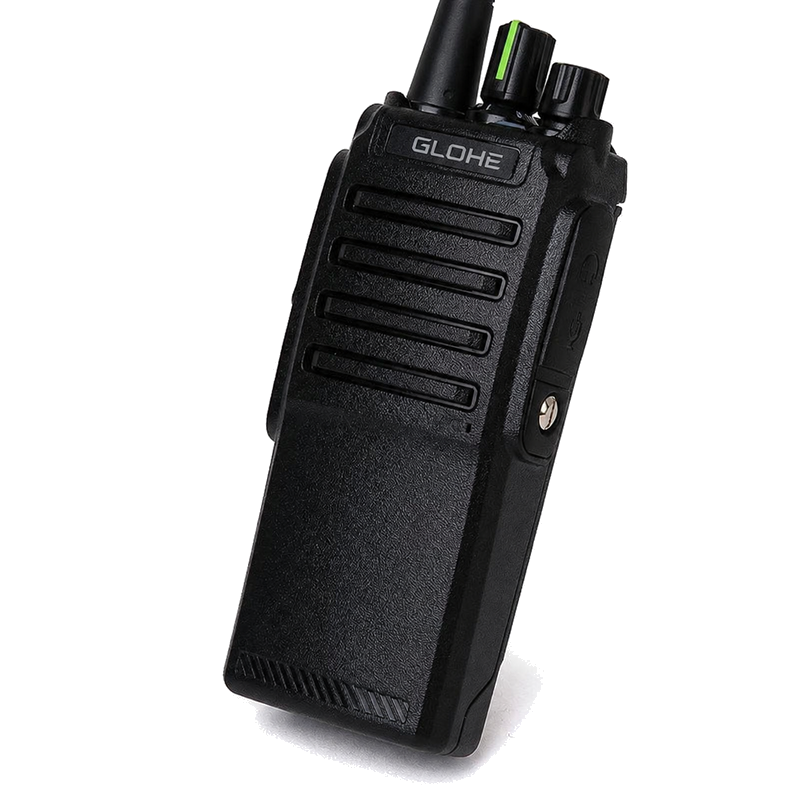

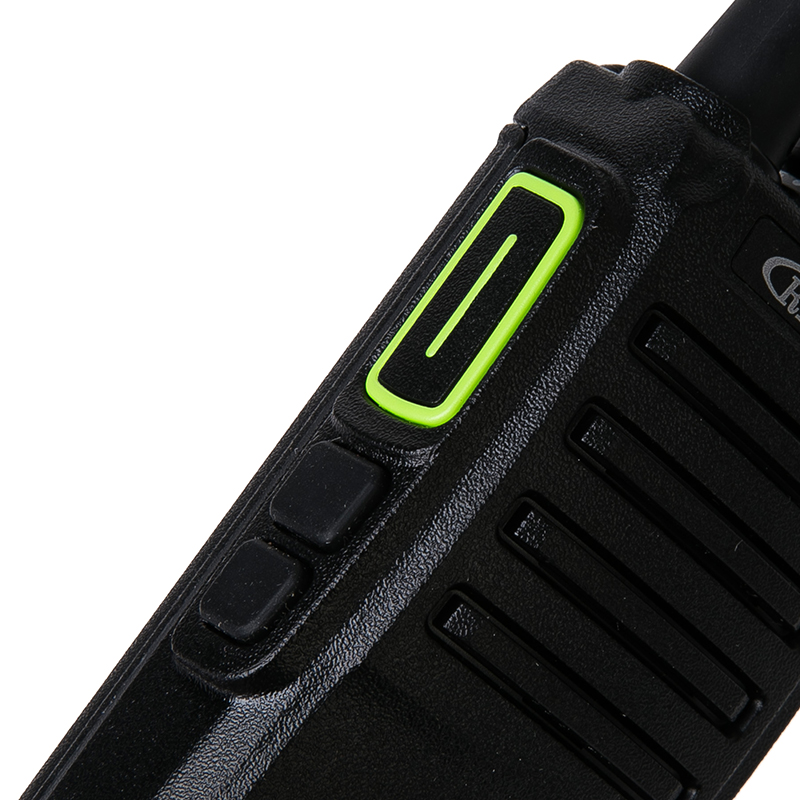

The A-902N is designed for professionals who require maximum communication reliability, powerful audio performance and rugged durability.
With 10W high-power transmission, AI background noise cancellation and an advanced ceramic filter receiver, the radio maintains clear communication even in noisy and interference-prone environments.
The large-capacity 2900mAh battery, IP66 protection rating and 128-channel capacity make the A-902N an ideal solution for construction sites, manufacturing plants, logistics centers and outdoor operations.
| A-902N Technical Specification | |||
| Product Parameters | |||
| General | |||
| Model | R1200 (Upgraded Version) | ||
| Device Name | Handheld Fm Walkie-Talkie | ||
| Channel Capacity | Area 8, Channel 128 | ||
| Channel Spacing | 25khz/12.5khz | ||
| Working Voltage | Dc7.5v | ||
| Frequency Range | Uhf | ||
| Standard Battery | 2900mah Lithium Battery | ||
| Antenna Impedance | 50ω | ||
| Working Temperature | -30℃ ~ +60℃ | ||
| Storage Temperature | -40℃ ~ +80℃ | ||
| Weight | 336g | ||
| Size: h x w x d (Mm) | 125x60x36 (Excluding Antenna) | ||
| Frequency Modulation Method | Fm | ||
| Receiver | |||
| Frequency Stability | +/-2.5ppm | Rated Audio Power | 1500mw |
| Reference Sensitivity | Better Than-121 Dbm | Received Signal-To-Noise Ratio | ≥45db |
| Reference Sensitivity | Better Than-121 Dbm | Audio Distortion | ≤5% |
| Neighboring Path Selectivity | ≥65db | Common Channel Suppression | ≥-8 Db |
| Acoustic Frequency Response | ≤+2db & ≥-10db | Neighboring Path Selectivity | ≥50 Db |
| Transmitter | |||
| Transmitting Power | High: 10 w / Low: 5 w | Frequency Stability | +/-2.5ppm |
| Transmission Signal-To-Noise Ratio | ≥40db | Maximum Frequency Deviation | ≤5khz |
| Emitting Stray Radiation | ≤7.5uw | Modulating Characteristic | +1db ~ -3db |
| Neighboring Channel Power | ≤-65db | Modulation Distortion | ≤5% |
| Main Function | |||
| High-Power Output Of 10w | |||
| 8 Regions, 128 Channels | |||
| Broadband-To-Narrowband Switching | |||
| The System Employs a Ceramic Filter For Strong Interference Suppression. | |||
| Ai-Based Background Noise Reduction Function | |||
| v0x Voice Control Function | |||
| Scan Function | |||
| Noise Reduction Level Settings | |||
| Supports Chinese And English Voice Playback | |||
| Battery Power Saving Feature | |||
| Simulated Subauditory (Qt)/Digital Subauditory (Dqt) | |||
| Busy Channel Lock | |||
| Release Time Limit | |||
| Ip66 Protection Rating |
1 × Portable radio
1 × Antenna

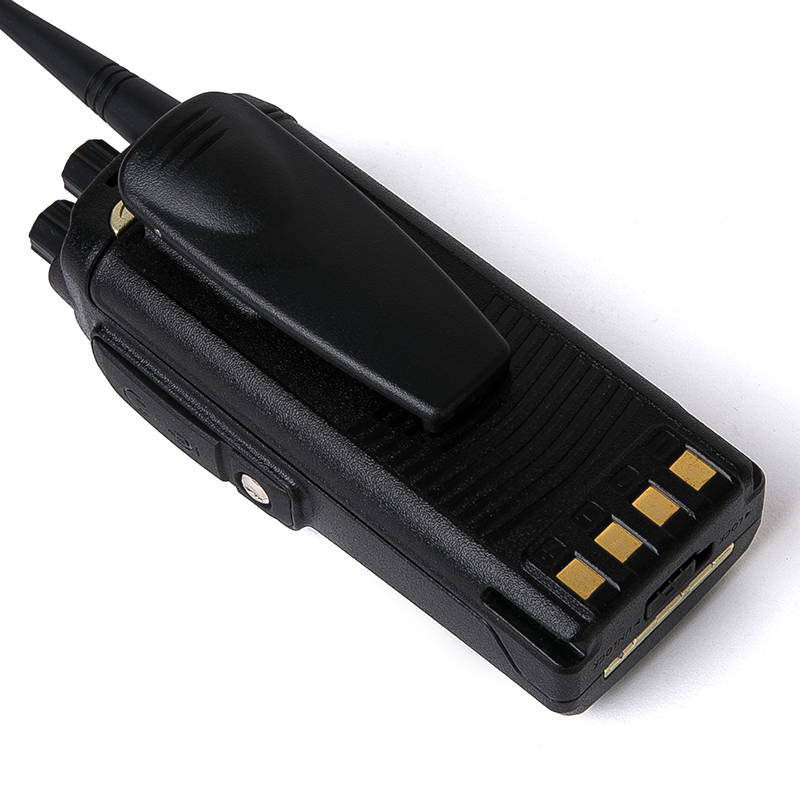

1 × Li-ion battery pack
1 × Desktop Charger
1 ×Belt clip
1 ×The sling
