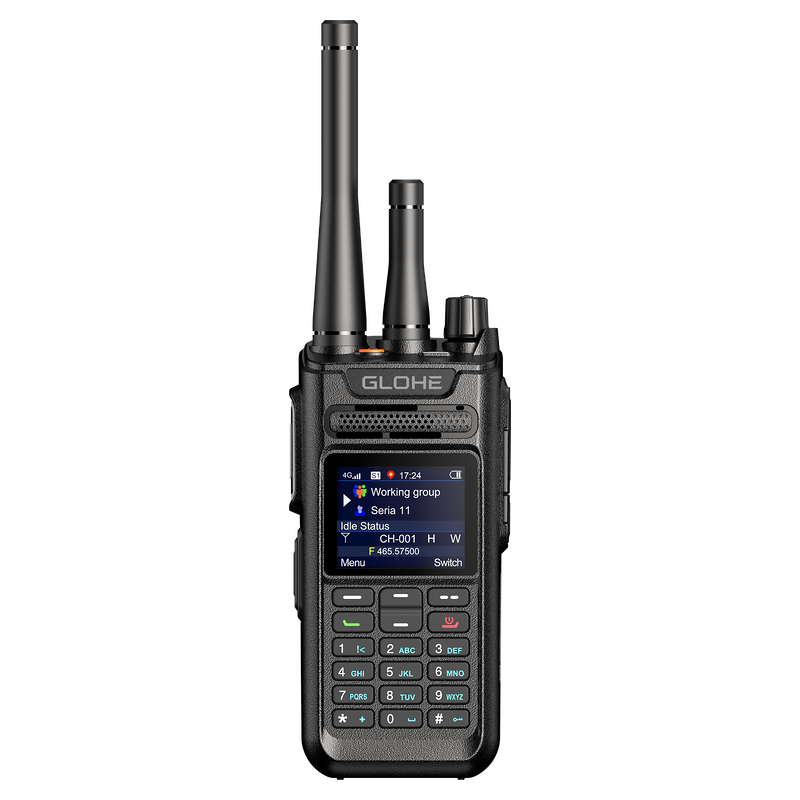

The AP260C is a professional communication radio integrating LTE nationwide communication, traditional analog radio and repeater network compatibility. It enables organizations to unify multiple communication systems through a single device.
| AP260C Technical Specification | |||
| Product Parameters | |||
| Public Network | |||
| Equipment Name | POC DUAL MODE + Analog | ||
| Working Voltage | DC: 3.7V | ||
| Network System | LTE-FDD / LTE-TDD | ||
| Frequency Range | Europe&Southeast Asia： FDD：B1/B3/B5/B7/B8/B20/B28 TDD：B38/B40/B41America&Australia B2/B3/B4/B5/B7/B8/B28/B66 | ||
| Maximum Transmit Power | LTE: 23 ± 2.7dBm (Power Class 3) | ||
| Standard Power Consumption | Standby: 80–120mA @ RX -75dBm; Average: 220mA @ RX -75dBm; Max: 800mA @ RX -104dBm | ||
| Receiving Sensitivity | LTE-FDD / LTE-TDD: -94dBm (10M) | ||
| Battery | 4000mAh Polymer Lithium Battery | ||
| Charge Mode | TYPE-C Direct Charger / Desktop Charger (Optional) | ||
| Antenna | External Dual-Mode Antenna | ||
| Operating Temperature | -20°C to +50°C | ||
| Weight | 256g | ||
| Dimensions (L × W × T) | 118 × 61 × 35mm (Without Antenna) | ||
| SIM Card | SIM1: Nano SIM; SIM2: Nano SIM | ||
| Analog | |||
| Channel Capacity | 128 | ||
| Channel Spacing | 25kHz / 12.5kHz | ||
| Working Voltage | DC 7.5V | ||
| Frequency Range | 400–470MHz | ||
| Antenna Impedance | 50Ω | ||
| Operating Temperature | -20°C to +50°C | ||
| Frequency Modulation | FM | ||
| Receiver | |||
| Frequency Stability | ±2.5ppm | ||
| Rated Audio Power | 1000mW | ||
| Reference Sensitivity | Better than -121dBm | ||
| SNR | ≥45dB | ||
| Audio Distortion | ≤5% | ||
| Adjacent Channel Selectivity (ACS) | ≥60dB @ 12.5kHz; ≥65dB @ 25kHz | ||
| Co-Channel Rejection | ≥-8dB | ||
| Audio Response | ≤+2dB and ≥-10dB | ||
| Transmitter | |||
| Transmitting Power | ≤3W | ||
| Frequency Stability | ±2.5ppm | ||
| Transmitting SNR | ≥40dB | ||
| Maximum Frequency Offset | ≤5kHz | ||
| Emit Spurious Radiation | ≤7.5μW | ||
| Modulation Characteristic | +1dB to -3dB | ||
| Adjacent Channel Power | ≤-60dB @ 12.5kHz; ≤-65dB @ 25kHz | ||
| Modulation Distortion | ≤5% | ||
| Main Function | |||
| POC | Analog | ||
| 1.7-Inch Color Screen + 20 Operating Buttons | Supports One-Button Frequency Pairing | ||
| Polymer Lithium Battery | Multi-Function Keypad Operation (20 Buttons) | ||
| GPS (Optional) | Wide / Narrow Band Switching | ||
| Numeric Numbering Single-Call Selection | High / Low Power Switching | ||
| Multi-Group Monitoring | Hand-Tuned Frequency | ||
| Multi-Member Single Call | Scan | ||
| Local Platform Upgrade | Squelch Level Setting | ||
| Dialing Function | Voice Broadcasting Support | ||
| SOS | Power Saving | ||
| Intercom Prompt Sound Switch | QT / DQT | ||
| Key Lock | Receive Priority Setting | ||
| Battery Level Display / Low Battery Alert | Repeater Mode (Analog to Public Network / Public Network to Analog) | ||
| Chime on Every Hour | Operating Modes: Channel / Frequency / Record | ||
| Direct Keypad Numeric Shortcut Single Call | Hand-Tuned QT / DQT | ||
| Platform System: REALPTT/XIN POC GLOBAL | Frequency Offset | ||
| Flashlight Function | Frequency Deviation | ||
| Channel Name Editing | |||
| Channel Storage: 128 Channels | |||
| Launch Time Limit | |||
1 × Portable radio
1 × Antenna
1 × Li-ion battery pack
1 × Charger
1 ×Belt clip
1 ×The sling
