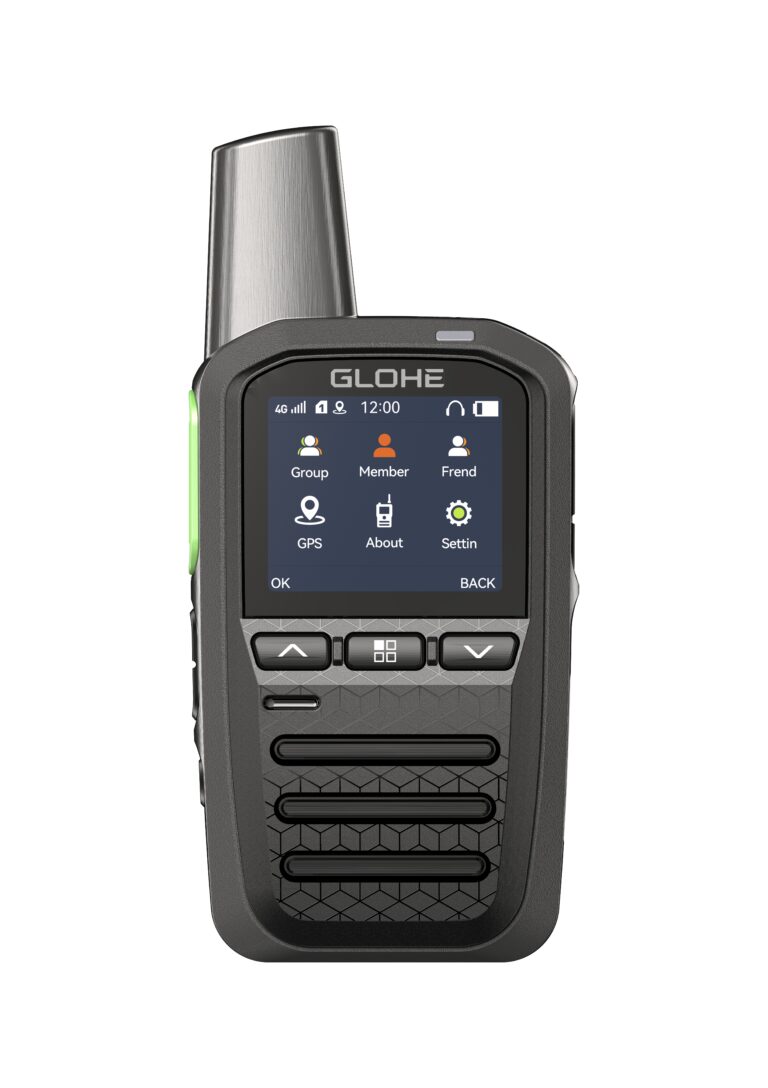

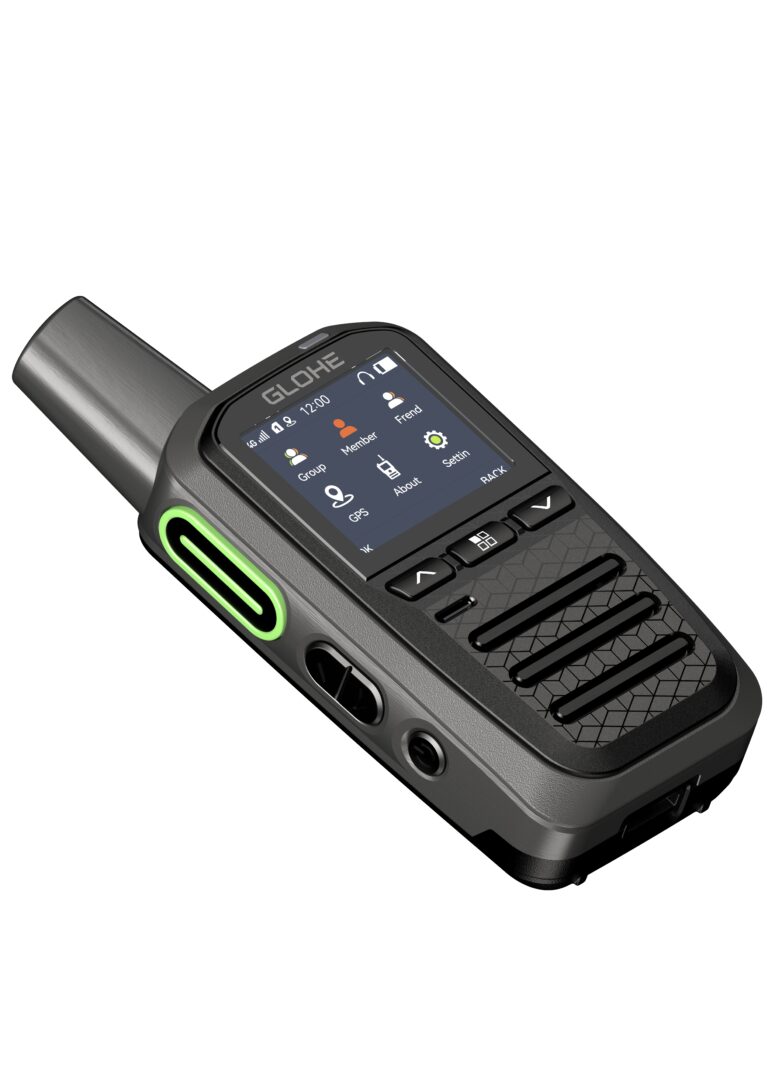

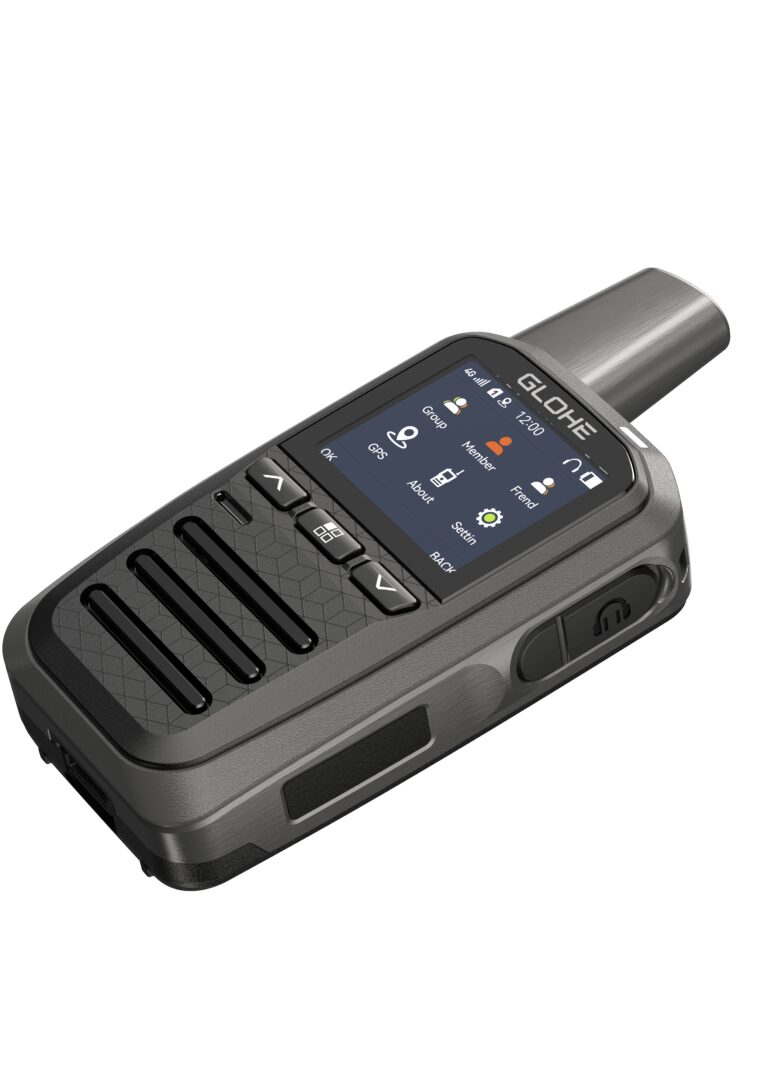

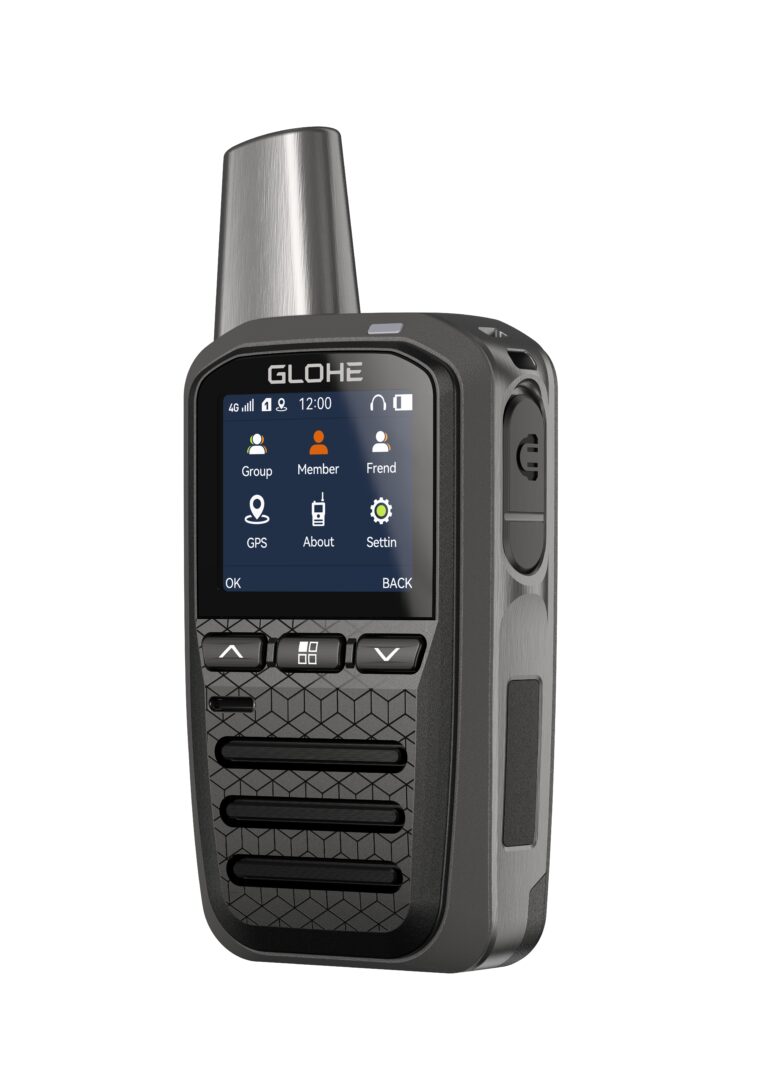

The P-188C Gray 4G LTE PoC Two-Way Radio is designed for businesses that require efficient wide-area team communication across multiple locations. Operating through compatible cellular networks and PoC platforms, it allows users to communicate beyond the conventional range limitations of standard analog radios.
| P-188C Technical Specification | |||
| Product Parameters | |||
| General | |||
| Model | 4G Cat1 – Compatible With All Networks | ||
| Device Name | LTE Public Network Digital Cluster Walkie-Talkie | ||
| Working Voltage | Dc: 3.4 v–4.2 v, Typical Value 3.8 v | ||
| Network Standard | America LTE (FDD):B1/ B2/B3/B4/B5/B7/B8/B20/B28 LTE (TDD):B34/B38/B39/B40/B41n Europe: LTE (FDD): B1/B2/B3/B4/B5/B7/B8/B12/B13/B17 LTE (TDD):B34/B38/B39/B40/B41n | ||
| Maximum Transmission Power | TDD-LTE Power Class 3（23 +/-2dbm） FDD-LTE Power Class 3（23 +/-2dbm） | ||
| Receiving Sensitivity | TDD-LTE -94 Dbm(20mhz) FDD-LTE -94 Dbm(20mhz) | ||
| Rated Audio Power | 500mw | ||
| Battery Capacity | Standard Configuration: 1500mah Battery | ||
| Power-Saving Mode: Standby Power Consumption | High-Efficiency Mode: 36 Ma; Standard Mode: 30 Ma; Smart Energy Saving Mode: 28 Ma; Super Energy Saving 1: 26 Ma; Super Energy Saving 2: 26 Ma | ||
| Charging Method | Battery Type-c Charging/Station Charging (Optional) | ||
| Antenna | Built-In Fpc Antenna | ||
| Working Temperature | -20℃ ~ +60℃ | ||
| Weight | 164g | ||
| Size: Length x Width x Height (Mm) | 98*56*36 Mm (Excluding Antenna) | ||
| Sim Card | Dual-Sim Small Card | ||
| Main Function | |||
| 1.77-Inch Color Screen | |||
| Hand Flashlight Functions | |||
| Dual Sim, Single Standby; Auto/Manual Switching | |||
| Ultra-Long Battery Life | |||
| Single Employee Call (This Feature Requires Consultation With The Platform Provider) | |||
| The Intercom Provides a Volume Control Switch. | |||
| Battery Level Display/Low Battery Alert | |||
| Platform:Realptt/XIN POC global | |||
| Recording Function (This Feature Requires Consultation With The Platform Provider) | |||
| Weather Forecast (This Feature Requires Consultation With The Platform Provider) | |||
| Location Map (This Feature Requires Consultation With The Platform Provider) |
1 × Portable radio
1 × Antenna
1 × Li-ion battery pack
1 × Charger
1 ×Belt clip
1 ×The sling
Custom logo printing, private labeling, customized packaging, firmware development and OEM/ODM communication solutions are available for distributors and system integrators worldwide.
Custom product development with your branding, specifications, and packaging requirements.
Advanced digital encryption, noise cancellation, and energy-efficient radio technology.
Dedicated after-sales support with technical consultation and warranty service worldwide.
