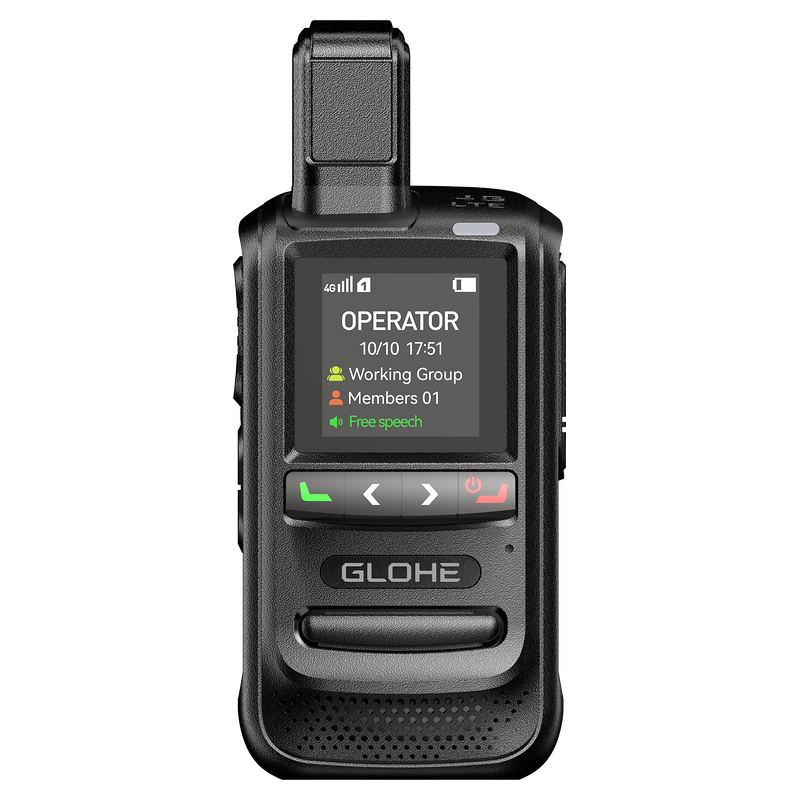

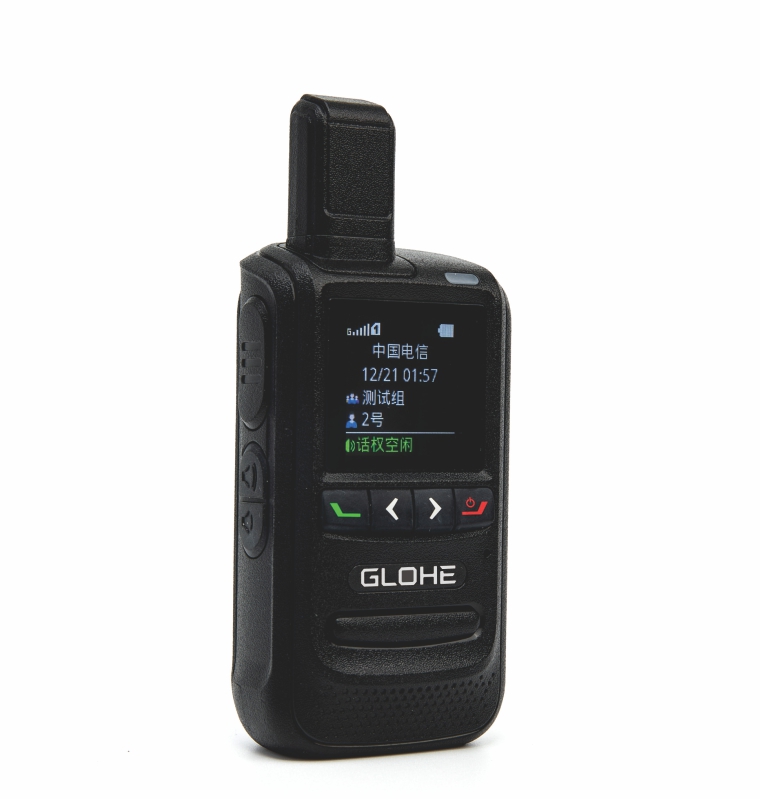

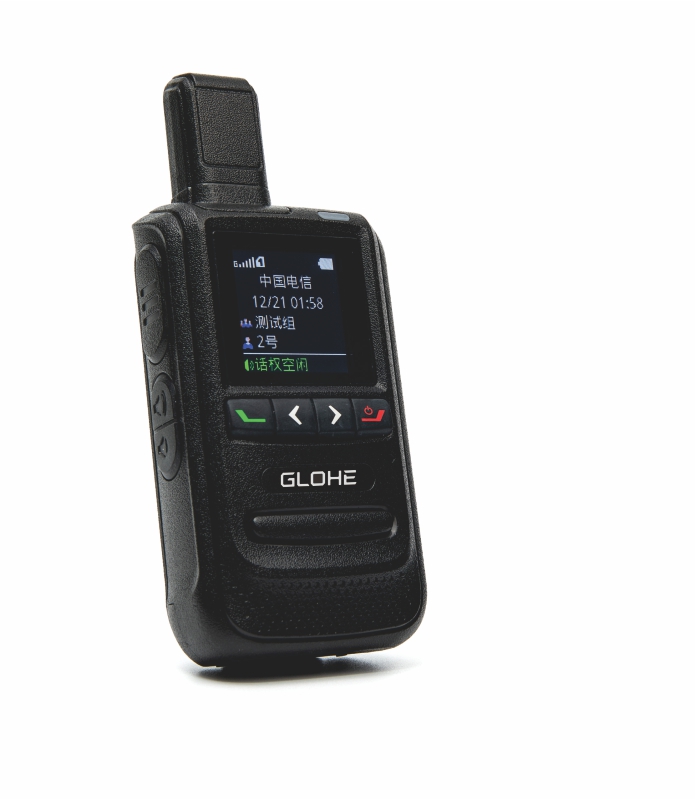

The P-186C is a lightweight LTE public network radio designed for instant nationwide communication over 4G networks. Compact, easy to operate and highly portable, it provides reliable push-to-talk communication for businesses, security teams and mobile workforces.
| P-186C Technical Specification | |||
| Product Parameters | |||
| General | |||
| Type | P-186C | ||
| Equipment Name | LTE Public Network Digital Walkie Talkies | ||
| Working Voltage | DC:3.4V-4.2V; Typical Value:3.7V | ||
| Network System | 4G | ||
| Frequency Range CAT.1 | LTE(FDD): B1/B2/B3/B4/B5/B7/B8/B12/B13/B17 / LTE(TDD):B34/B38/B39/B40/B41 M12C-NA(newest):US Edition LTE-FDD:B1,2,3,4,5,7,8,12,13,17,66 LTE-TDD:38,40,41 | ||
| Maximum Transmit Power | TDD-LTE Power Class 3(23 +/-2dBm) / FDD-LTE Power Class 3(23 +/-2dBm) | ||
| Stand-by Time | Typical Standby | ||
| Receiving Sensitivity | TDD-LTE -94 dBm(20MHZ) / FDD-LTE -94 dBm(20MHZ) | ||
| Rate Audio Power | 500mW | ||
| Battery | Standard Thin Battery: Polymer Lithium Battery 2000mA | ||

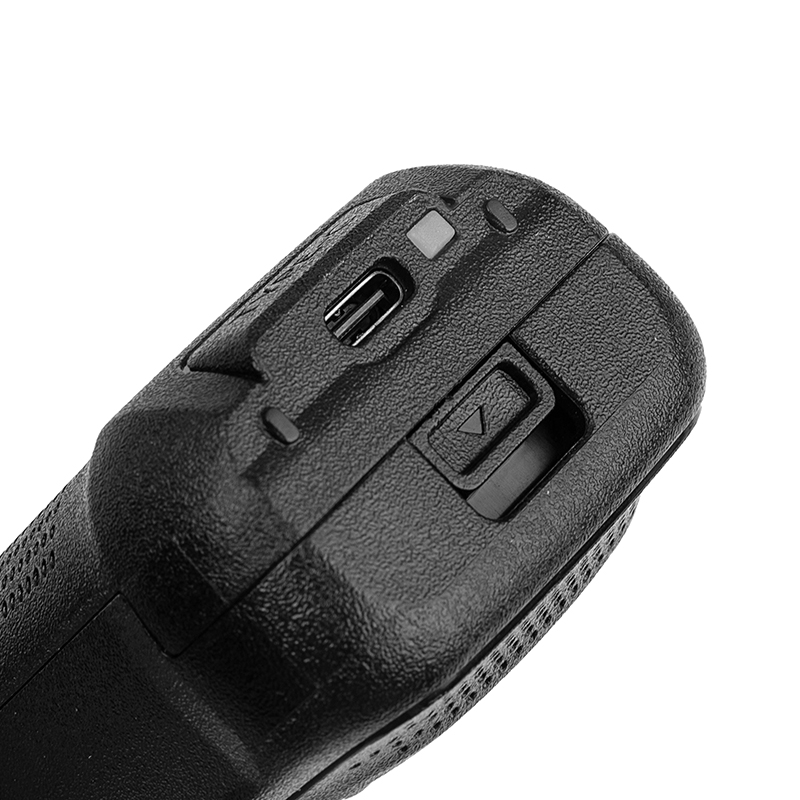

| Charge Mode | TYPE-C | ||
| Antenna | Built In FPC Antenna | ||
| Operating Temperature | -20℃ ~ +50℃ | ||
| Weight | 174g | ||
| Size: Length*Width*Thickness(mm) | 97*55*34(Without Antenna) | ||
| SIM Card | Nano SIM | ||
| Main Function | |||
| 1.45-inch Color Screen | |||
| Polymer Lithium Battery | |||
| Ultra Long Standby Time | |||
| Nationwide Intercom. Private call/Group call/All Call | |||
| Multi-group Listening(This Feature Requires Consultation With The Platform Provider) | |||
| Multi-member Single Call(This Feature Requires Consultation With The Platform Provider) | |||
| Intercom Prompt Sound Switch | |||
| Key Lock | |||
| Battery Level Display/Low Battery Alert | |||
| Platform System Upgrade |

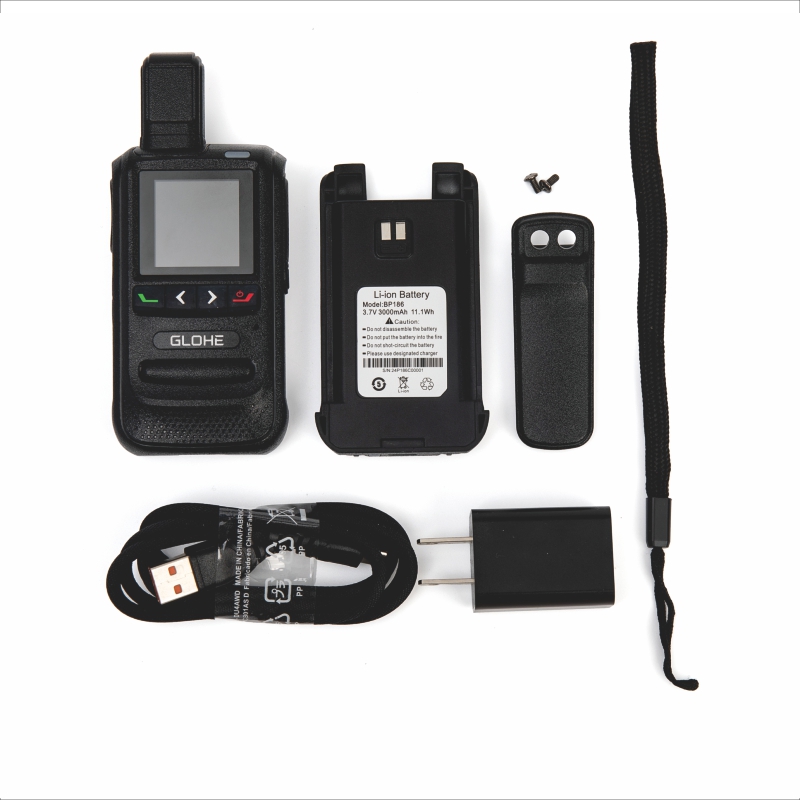

1 × Portable radio
1 × Antenna
1 × Li-ion battery pack
1 ×usb charger

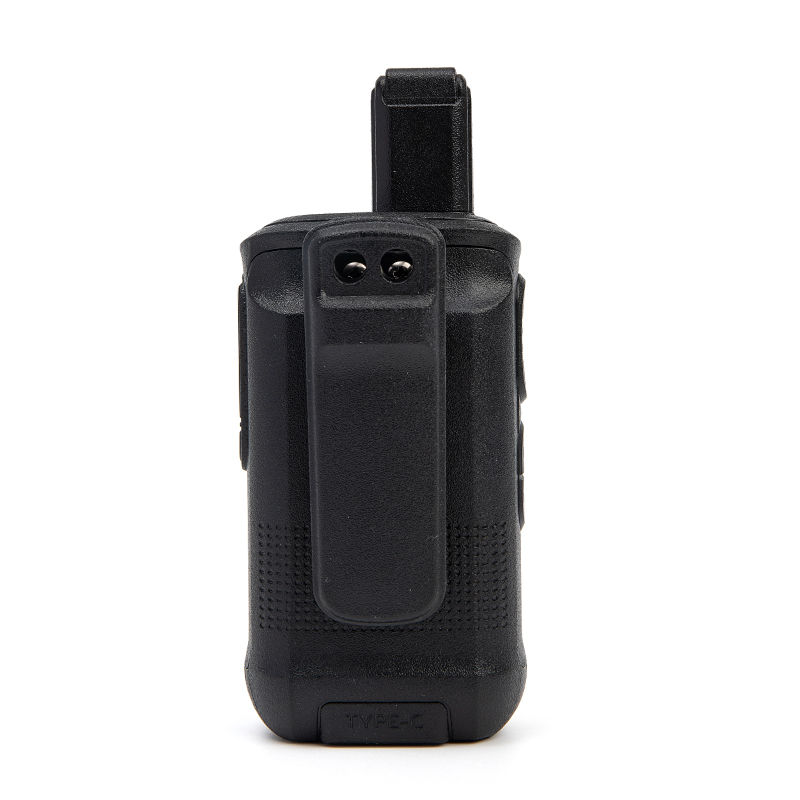

1 ×Belt clip
1 ×The sling
Custom logo printing, private labeling, customized packaging, firmware development and OEM/ODM communication solutions are available for distributors and system integrators worldwide.
Custom product development with your branding, specifications, and packaging requirements.
Advanced digital encryption, noise cancellation, and energy-efficient radio technology.
Dedicated after-sales support with technical consultation and warranty service worldwide.
