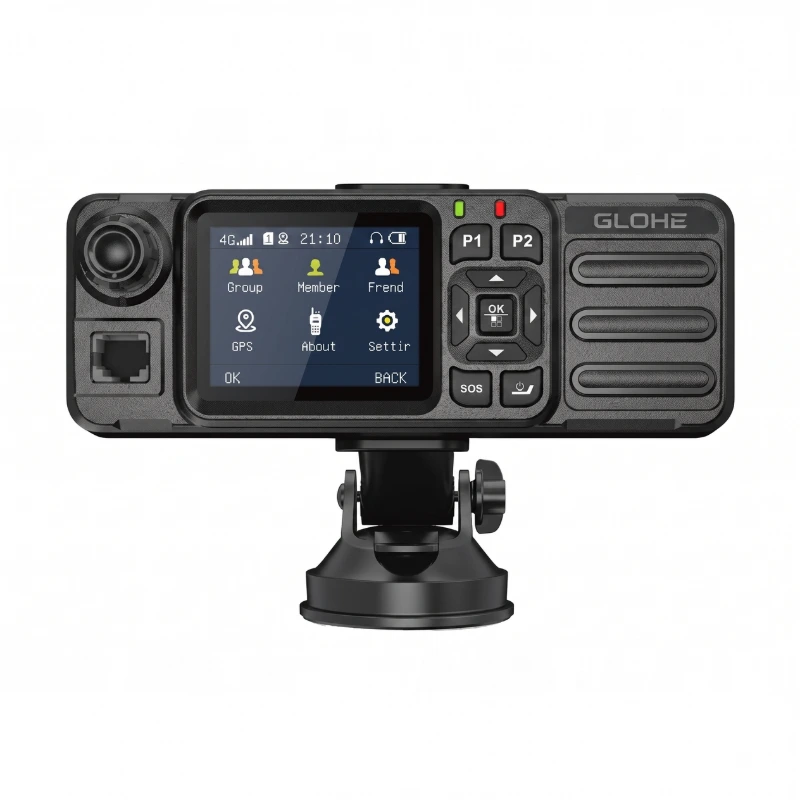

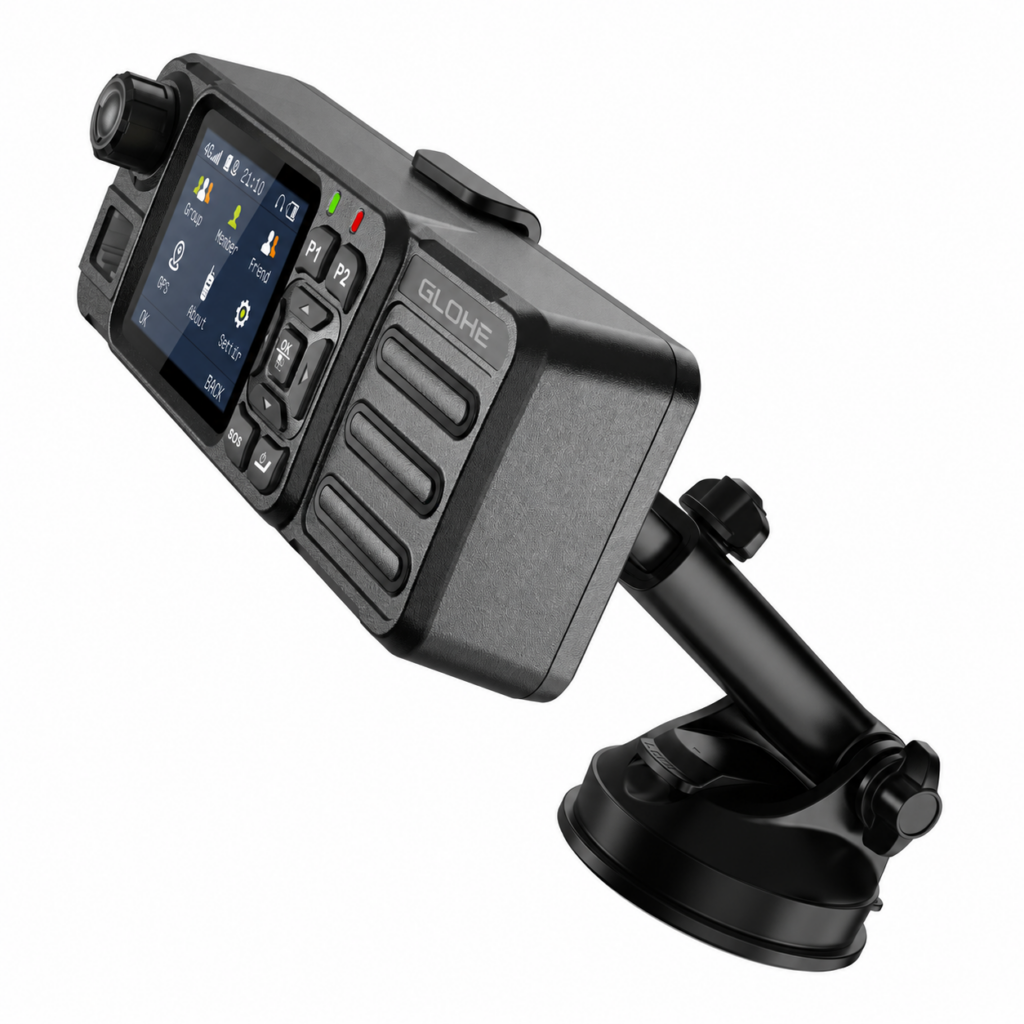

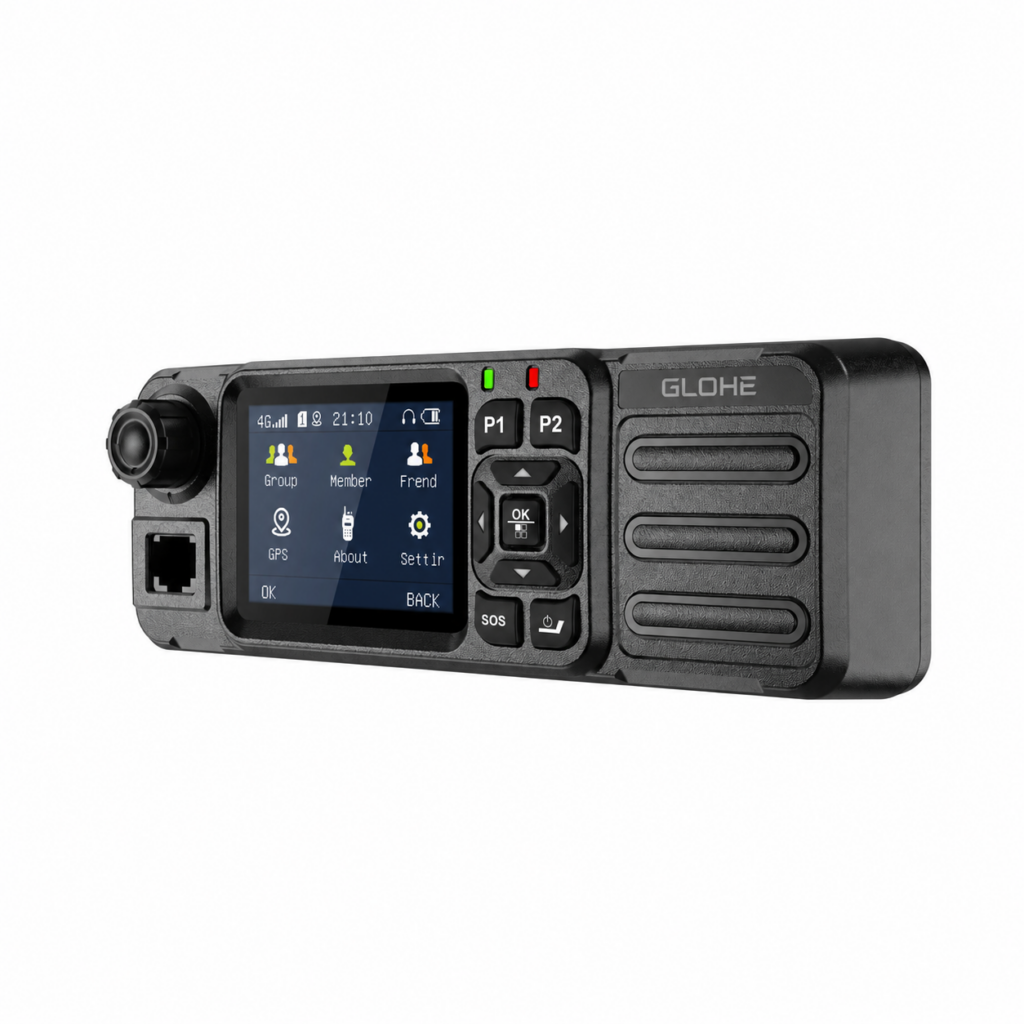

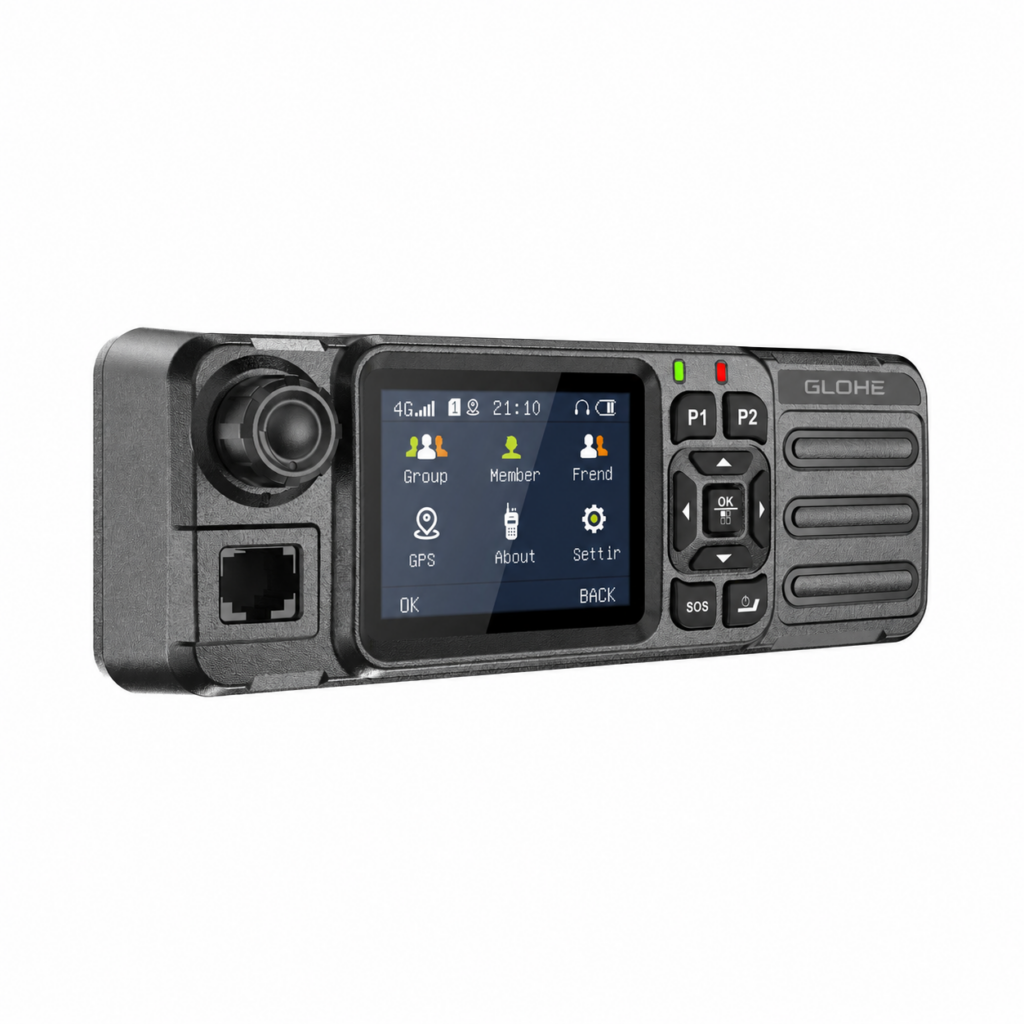

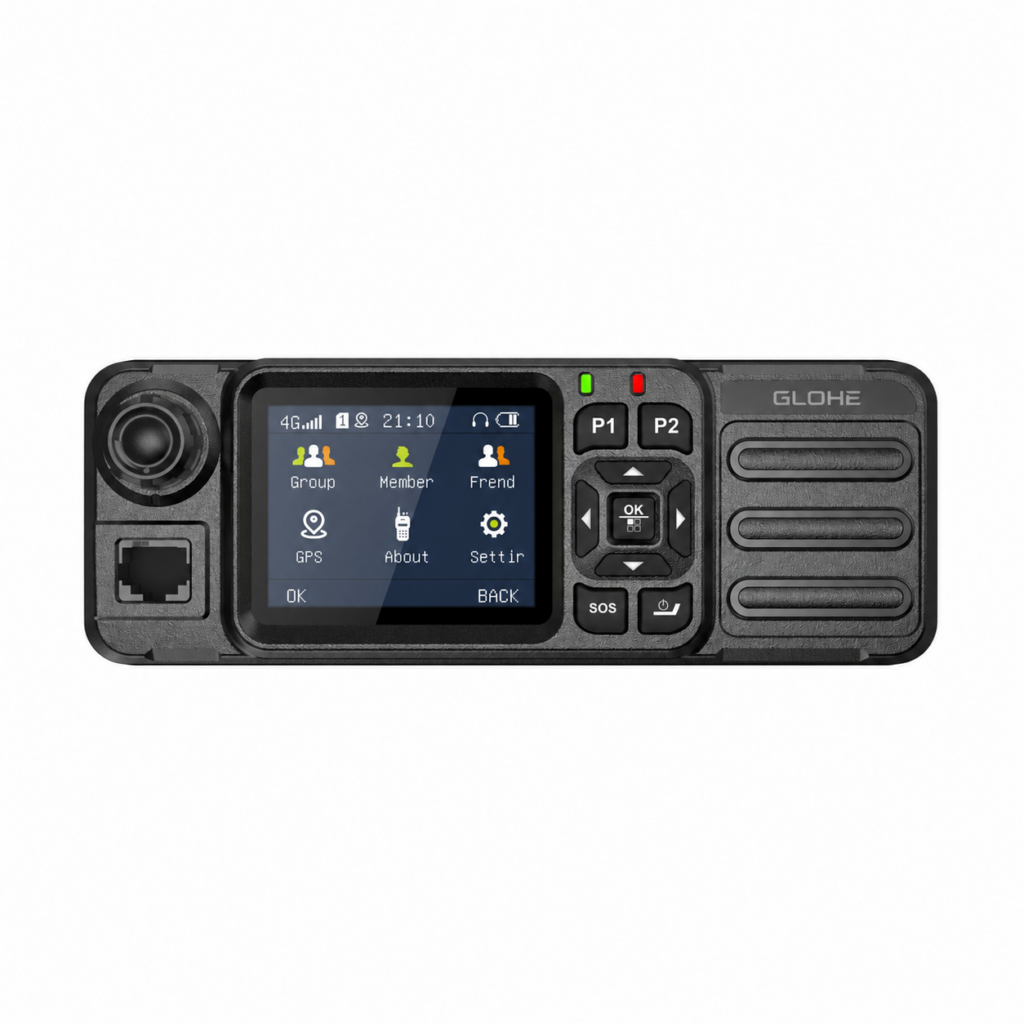

Vehicle-mounted 4G PoC mobile radio for fleet dispatch.
The GLOHE PM818 runs on 12 V vehicle power, with dual SIM, a 2.4-inch color screen, optional GPS and an SOS alarm for trucks, taxis and logistics fleets.
The GLOHE PM818 is a vehicle-mounted 4G LTE push-to-talk (PoC) mobile radio for fleet dispatch and transportation management. Unlike analog mobile radios that depend on repeater coverage, the PM818 works over the mobile network, so drivers and dispatchers can talk across cities, states and countries wherever cellular coverage is available.
The PM818 works with the RealPTT and XIN POC platforms. LTE band version, platform account and function settings are confirmed before production according to the destination market and operator.
PM818 at a glance
A PoC radio needs three things: the radio, a SIM card with a mobile data plan from a local operator, and an account on a PoC platform such as RealPTT or XIN POC. The platform manages users and talk groups. GLOHE can help confirm the platform setup and SIM requirements before an order ships.
Multi-group monitoring and multi-member individual calls depend on the PoC platform and its service plan. Please confirm which functions are required so the correct platform configuration can be prepared.
The PM818 is a practical choice for trucks, taxis, delivery and logistics fleets, construction vehicles, security patrol cars and commercial vehicle operations.
For distributor and project orders, GLOHE can discuss logo printing, private labeling, packaging, platform pre-configuration and accessory combinations. Confirm the target market, operator and platform before sampling.
Learn more about GLOHE OEM & ODM services.
The PM818 runs on 12 V DC vehicle power through the cigarette lighter socket.
Yes. The PM818 uses standard-size SIM cards with a mobile data plan from a local operator. It supports dual SIM with single standby and automatic or manual switching.
The PM818 is available in an EU version (B1/2/3/4/5/7/8/20/28 and B34/38/39/41) and a North America version (B1/2/3/4/5/7/8/12/13/17/66 and B38/40/41). Please share your country and operator so we can confirm the matching version.
The PM818 works with the RealPTT and XIN POC platforms. The platform account and talk groups are set up according to the project plan.
GPS is optional. When GPS is selected, vehicle positions can be viewed on the platform dispatch software. Please confirm GPS when placing the order.
Yes. Logo printing, private labeling, custom packaging and platform pre-configuration can be discussed for distributor and project orders.
| Technical Specifications | |||
| model | PM818 | ||
| device name | Push-to-Talk Over Cellular Radio | ||
| working voltage | DC: 12V | ||
| Network mode | 4G | ||
| EU:B1/2/3/4/5/7/8/20/28/B34/38/39/41 / NA:B1/2/3/4/5/7/8/12/13/17/66/B38/40/41 | |||
| Maximum transmission power | TDD-LTE Power Class 1(23 +/-2dBm) FDD-LTE Power Class 1(23 +/-2dBm) | ||
| receiving sensitivity | TDD-LTE – 94 dBm( 1 0MHZ) FDD-LTE – 94 dBm( 1 0MHZ) | ||
| Rated audio power | 10 00m W | ||
| power supply mode | DC12V to 12V on board (lighter) | ||
| antenna | External PCB antenna | ||
| working temperature | -20℃ ~ + 50℃ | ||
| weight | 186 g | ||
| Size: length x width x thickness (mm) | 166*61*35 (excluding antenna) | ||
| SIM block | Standard size dual SIM card | ||
| GPS (Optional) Performance Index Parameters | |||
| frequency | 1575.42MHz | Track sensitivity | -155dBm |
| acquisition sensitivity | -143dBm | Initial positioning time (outdoor) | Hot start: 4s |
| acquisition sensitivity | -143dBm | Initial positioning time (outdoor) | Cold start: 55s |
| Refresh rate | 2-4HZ | antenna | active antenna |
| power dissipation | 35mA | look over | The longitude and latitude display of the machine and the platform dispatching software |
| Main Function | |||
| 2.4 inch color screen | |||
| Dual card single standby, automatic/manual switching | |||
| GPS positioning (optional) | |||
| Super long battery life | |||
| Multi-group monitoring (this function needs to consult the platform) | |||
| Multi-member single call (this function needs to consult the platform) | |||
| The intercom provides an audio switch | |||
| Battery display / low battery warning | |||
| SOS alarm function | |||
| Platform system software version upgrade |
