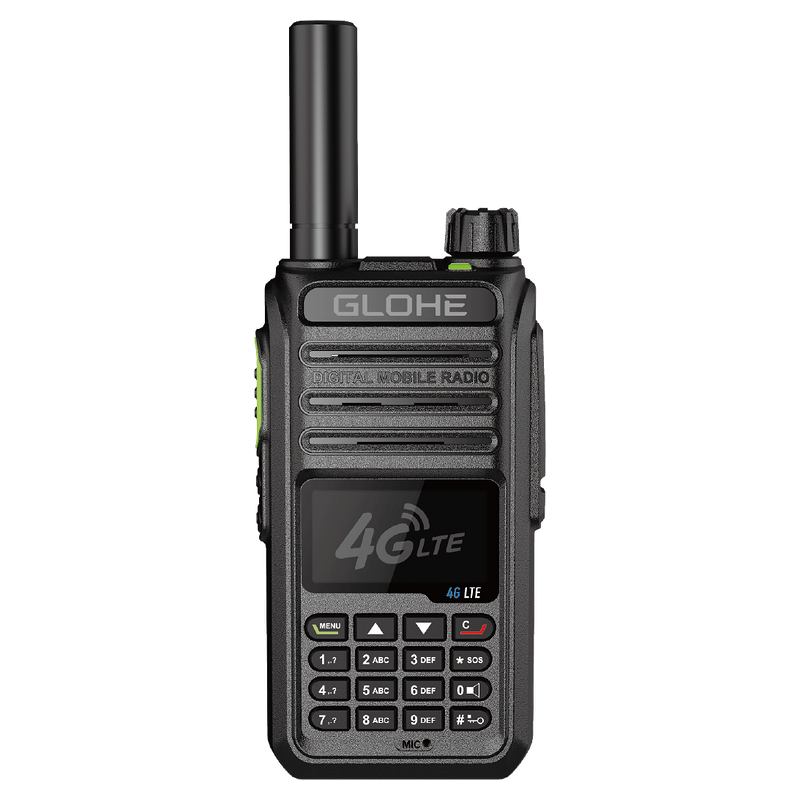

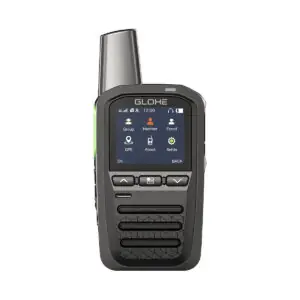

The P-187 is a professional LTE PoC radio designed for organizations that require nationwide communication, real-time location tracking and reliable field operations. Equipped with dual SIM support, optional GPS and extended battery capacity, it provides a complete communication solution for mobile teams.
| P-187 4G LTE Technical Specification | |||
| Product Parameters | |||
| General | |||
| Type | P-187 | ||
| Equipment Name | LTE Public Network Digital Walkie Talkies | ||
| Working Voltage | DC:3.4V-4.2V, Typical Value: 3.8V | ||
| Network System | LTE-FDD/LTE-TDD/WCDMA/TD-SCDMA/GSM/CDMA/CDMA2000-EVDO | ||
| Frequency Range CAT.4 | LTE(FDD): B1/B2/B3/B4/B5/B7/B8/B12/B13/B17 / LTE(TDD):B34/B38/B39/B40/B41 M12C-NA: US Edition LTE-FDD:B1,2,3,4,5,7,8,12,13,17,66 LTE-TDD:38,40,41 | ||
| Maximum Transmit Power | Class 3 (23dBm±1dBm) for LTE | ||
| Standard Power Consumption | Standby Current:50-130mA@RX-75dBm for LTE | ||
| Standard Power Consumption | Average Operating Current:220mA@RX-75dBm for LTE | ||
| Standard Power Consumption | Max Current:800mA@RX-104dBm | ||
| Receiving Sensitivity | -106dBm | ||
| Battery | Standard Thin Battery: Polymer Lithium Battery 3600mAh (Optional Thick Battery 5000mAh) | ||
| Charge Mode | TYPE-C / Stand Charger (Optional) | ||
| Antenna | External SMA, PCB Antenna | ||
| Operating Temperature | -20℃ ~ +50℃ | ||
| Weight | 231g(Thin Battery ) 273g(Thick Battery ) | ||
| Size: Length*Width*Thickness(mm) | 106mm*60mm*31mm(Thin Battery ) / 106mm*60mm*39mm(Thick Battery ) | ||
| Dual SIM Card | Micro SIM NanoSIM | ||
| GPS (Optional) | |||
| Frequency | 1575.42MHz | Tracking Sensitivity | -155dBm |
| Capture Sensitivity | -143dBm | First Positioning Time(Outdoors) | Hot Start:4s |
| Capture Sensitivity | -143dBm | First Positioning Time(Outdoors) | Cold Boot:55s |
| Refresh Rate | 2-4HZ | Antenna | Built-in Ceramic Active Antenna |
| Power Consumption | 35mA | Check | Native Latitude And Longitude Display And Platform Scheduling Software |
| Main Function | |||
| 4G | |||
| Polymer Lithium Battery | |||
| GPS(Optional) | |||
| Numeric Numbering Single Call Selection | |||
| Multi-group Listening | |||
| Multi-member Single Call | |||
| Platform System Upgrade | |||
| Dialing Function (Mobile Phone Card) | |||
| SOS | |||
| Intercom Prompt Sound Switch | |||
| Key Lock | |||
| Battery Level Display/Low Battery Alert | |||
| Chime On Every Hour | |||
| Platform System:REALPTT/XIN POC GLOBAL |
1 × Portable radio
1 × Antenna
1 × Li-ion battery pack
1 × Charger
1 ×Belt clip
1 ×The sling
