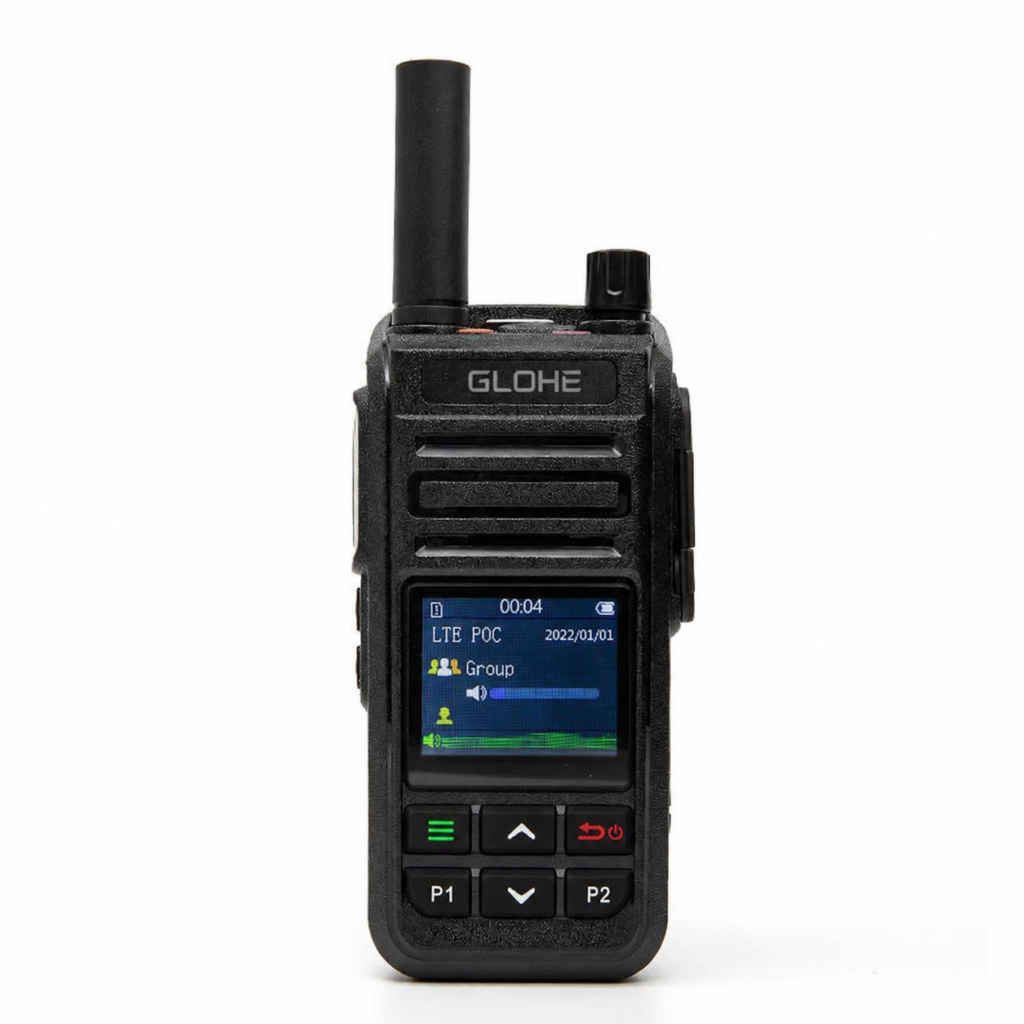

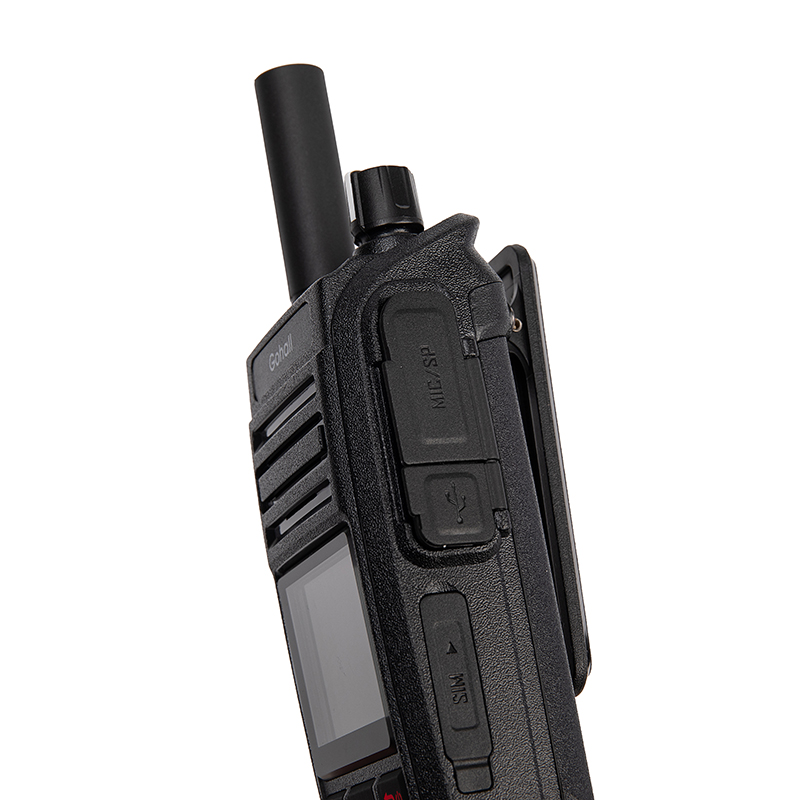

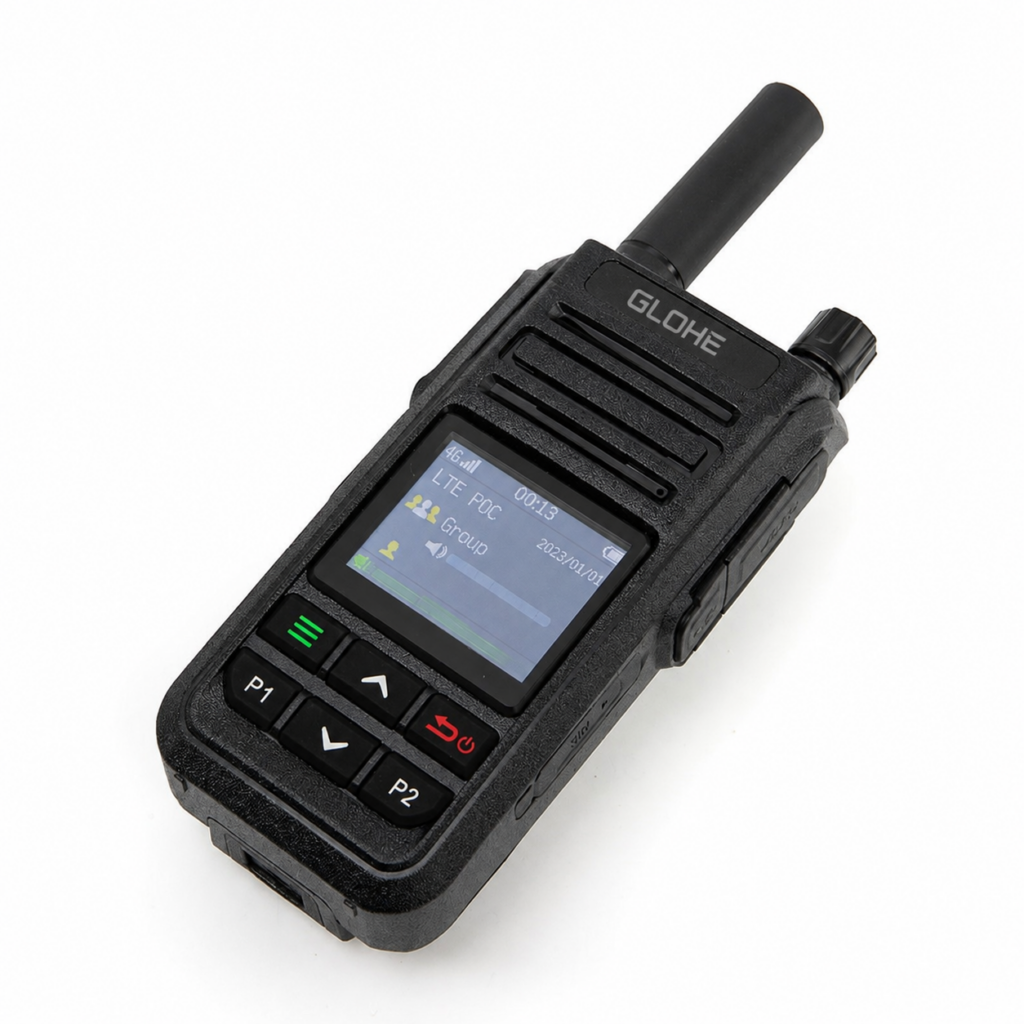

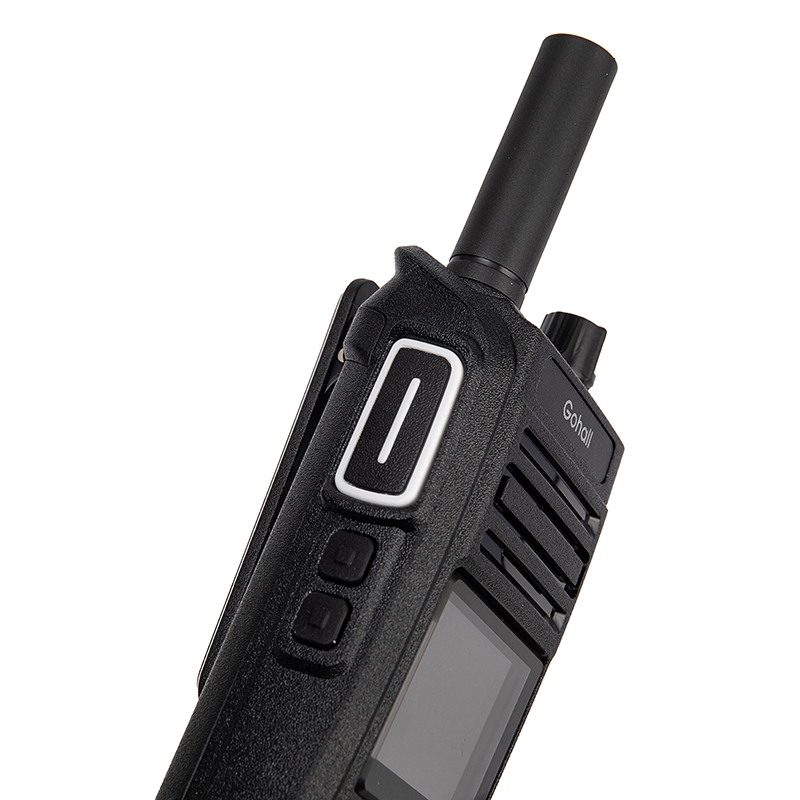

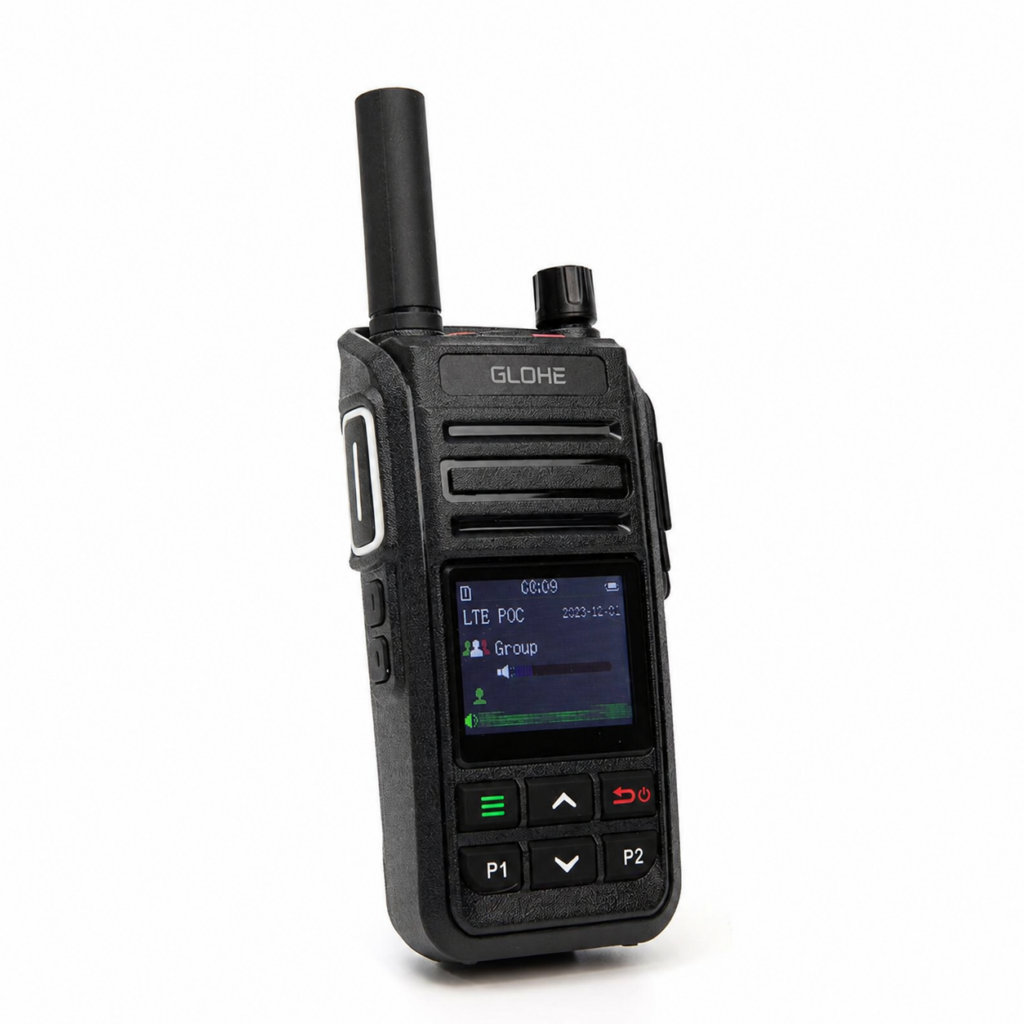

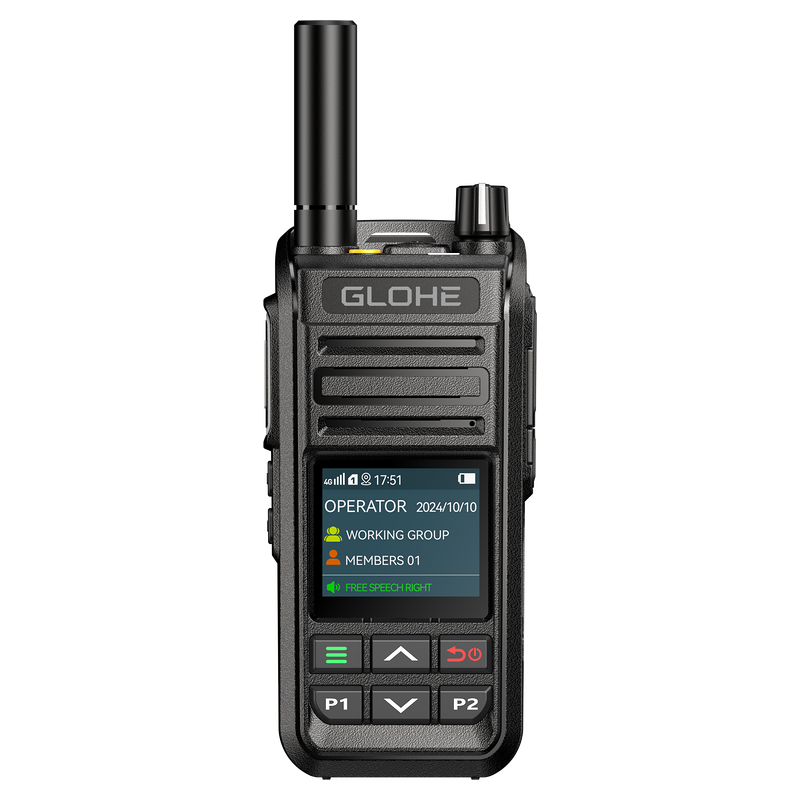

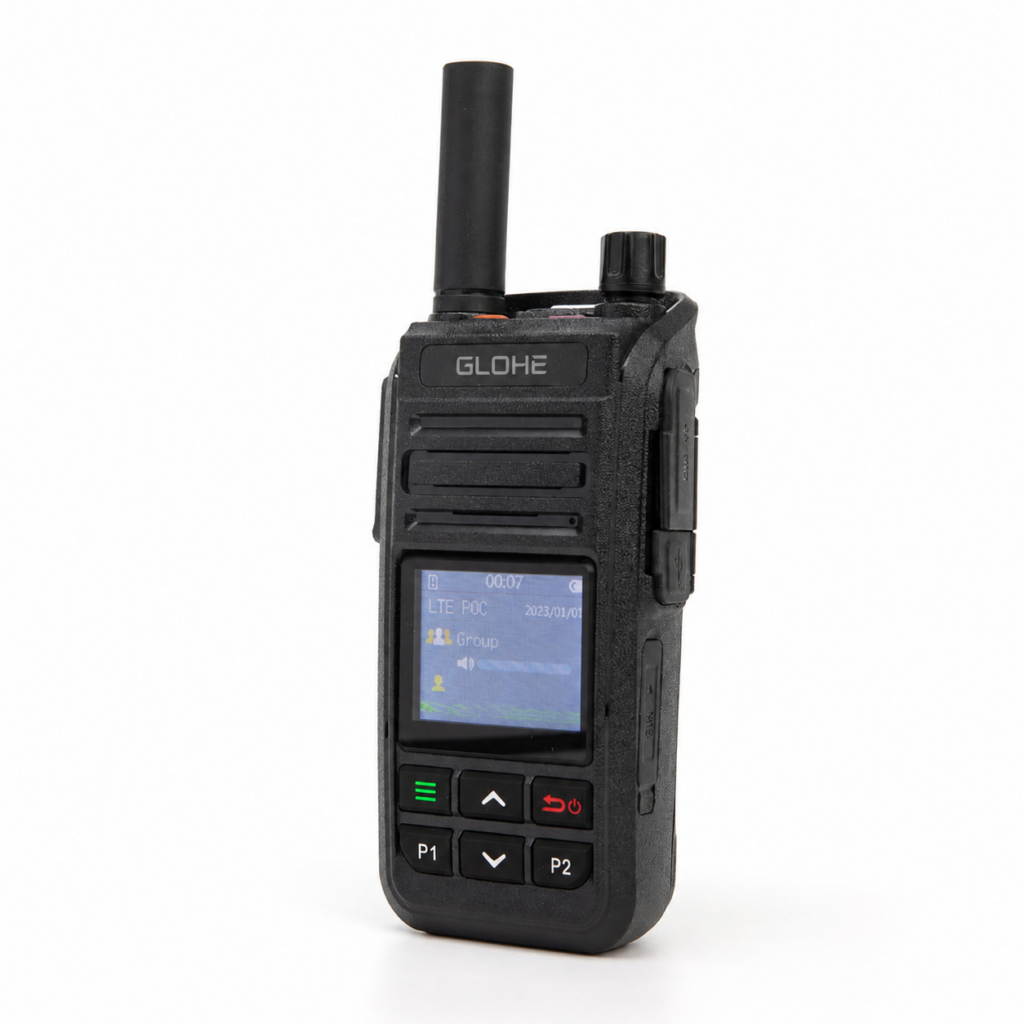

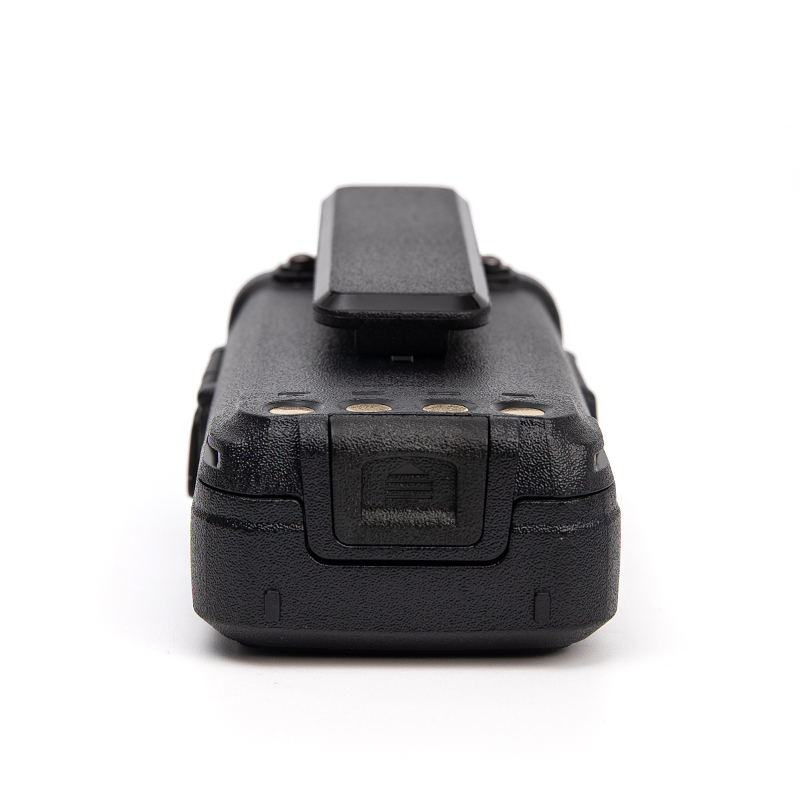

The P-386C is a professional LTE PoC radio designed for reliable nationwide communication. Featuring dual SIM support, optional GPS tracking and a user-friendly color display, it provides an efficient communication solution for businesses, security teams and mobile workforces.
| P-386C Technical Specification | |||
| Product Parameters | |||
| General | |||
| Model | DS-928【P-386C】 | ||
| Device Name | LTE Public Network Digital Trunked Radio | ||
| Working Voltage | Dc: 3.4v–4.2v, Typical Value 3.8v | ||
| Network Standard | 4G | ||
| Band Range | America ·LTE(FDD):1/2/3/4/5/7/8/20/28.LTE(TDD):34/38/39/40/41n Europe ·LTE(FD0):1/2/3/4/5/7/8/12/13/17·LTE(TDD):34/38/39/40/41n | ||
| Maximum Transmission Power | TDD-LTE Power Class 3（23 +/-2dbm） FDD-LTE Power Class 3（23 +/-2dbm） | ||
| Stand-By Time | Typical Standby Value | ||
| Receiving Sensitivity | TDD-LTE -94 Dbm(20mhz) FDD-LTE -94 Dbm(20mhz) | ||
| Rated Audio Power | 500mw | ||
| Cell | Polymer Battery | ||
| Charging Method | Battery Type-c Charging / Wall Charger (Optional) | ||
| Antenna | Built-In Fpc Antenna | ||
| Working Temperature | -20℃ ~ +50℃ | ||
| Weight | 256g | ||
| Dimensions: Length x Width x Thickness (Mm) | 135*61*33 (Excluding The Antenna) | ||
| Sim Card | Nano Sim | ||
| GPS (Optional) | |||
| Frequency | 1575.42mhz | Tracking Sensitivity | -155dbm |
| Acquisition Sensitivity | -143dbm | First Positioning Time (Outdoor) | Hot Start: 4s |
| Acquisition Sensitivity | -143dbm | First Positioning Time (Outdoor) | Cold Start: 55 Seconds |
| Update Rate | 2-4hz | Antenna | Active Antenna |
| Power Dissipation | 35ma | Look Over | The Device Displays Its Latitude And Longitude, As Well As Information From The Platform Scheduling Software. |
| Main Function | |||
| 1.78-Inch Color Screen | |||
| Dual Sim Automatic Switching | |||
| Polymer Lithium Battery | |||
| GPS Positioning (Optional) | |||
| Ultra-Long Standby Time | |||
| Multi-Group Listening (This Feature Requires Consultation With The Platform Provider) | |||
| Single Call With Multiple Members (This Feature Requires Consultation With The Platform Provider) | |||
| Intercom Alert Sound Switch | |||
| Button Lock | |||
| Battery Level Display/Low Battery Alert | |||
| Platform System Software Version Upgrade |
1 × Portable radio
1 × Antenna
1 × Li-ion battery pack
1 × Charger
1 ×Belt clip
1 ×The sling
