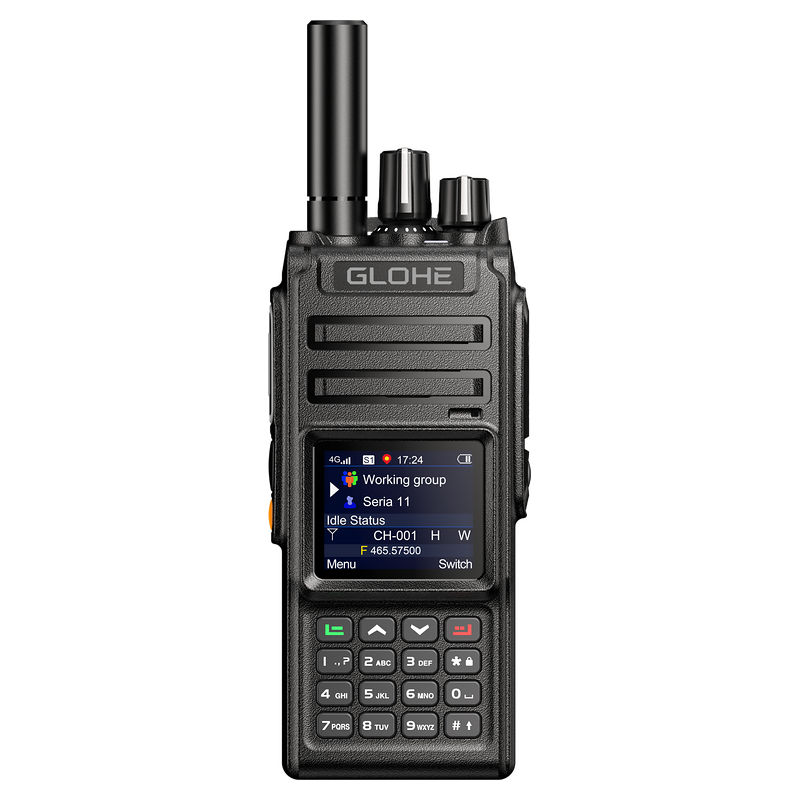

The P-387C is a professional LTE PoC radio designed for reliable nationwide communication. Featuring dual SIM support, optional GPS tracking and a user-friendly color display, it provides an efficient communication solution for businesses, security teams and mobile workforces.
| P-387C Technical Specification | |||
| Product Parameters | |||
| General | |||
| Network Description | 4G LTE Public Network | ||
| Type | P-387C | ||
| Working Voltage | DC:7.5V | ||
| Network System | 4G | ||
| Frequency Range | Europe&Southeast Asia： FDD：B1/B3/B5/B7/B8/B20/B28 TDD：B38/B40/B41 America&Australia | ||
| Maximum Transmit Power | – LTE: 23 ±2.7dBm (Power Class 3) / – WCDMA : 24 +1/-3dBm (Power Class 3) / – GSM900 : 33±2dBm (Power Class 4) / – GSM1800: 30±2dBm (Power Class 1) | ||
| Standard Power Consumption | Standby Current:80-120mA@RX-75dBm for LTE | ||
| Standard Power Consumption | Average Operating Current:220mA@RX-75dBm for LTE | ||
| Standard Power Consumption | Max Current:800mA@RX-104dBm | ||
| Receiving Sensitivity | -106dBm | ||
| Battery | Polymer Lithium Battery | ||
| Charge Mode | TYPE-C/ Seat-charger | ||
| Antenna | External Dual Mode Antenna | ||
| Operating Temperature | -20℃ ~ +50℃ | ||
| Weight | 360g | ||
| Size: Length*Width*Thickness(mm) | 125x60x36(Without Antenna) | ||
| SIM Card | Nano SIM | ||
| GPS (Optional) | |||
| Frequency | 1575.42MHz | Tracking Sensitivity | -155dBm |
| Capture Sensitivity | -143dBm | First Positioning Time(Outdoors) | Hot Start:4s |
| Capture Sensitivity | -143dBm | First Positioning Time(Outdoors) | Cold Boot:55s |
| Refresh Rate | 2-4HZ | Antenna | Active Antenna |
| Power Consumption | 35mA | Check | Native Latitude And Longitude Display And Platform Scheduling Software |
| Main Function | |||
| POC | |||
| LTE-FDD/WCDMA/GSM. | |||
| 1.7-inch Color Screen | |||
| 20 Operation Buttons | |||
| Lithium Polymer Battery | |||
| GPS (Optional) | |||
| Dialing Single Call | |||
| Multi-group Monitoring | |||
| Multi-member Single Call | |||
| SOS | |||
| Intercom Tone Switch | |||
| Key lock | |||
| Battery Display | |||
| Low Battery Alert | |||
| Hour reporting | |||
| Voice Support:4K/8K | |||
| Dual Card Automatic/Manual Switch | |||
| Platform System: REALPTT/XIN POC | |||
| IP66 Waterproof |
1 × Portable radio
1 × Antenna
1 × Li-ion battery pack
1 × Desktop Charger
1 ×Belt clip
1 ×The sling
Custom logo printing, private labeling, customized packaging, firmware development and OEM/ODM communication solutions are available for distributors and system integrators worldwide.
