The P-286C is a compact and reliable LTE PoC radio designed for nationwide communication over 4G networks. Featuring dual SIM support, optional GPS positioning and a high-capacity 4200mAh battery, it provides dependable communication for professional users who require mobility and extended operating time.
| P-286C Technical Specification | |||
| Product Parameters | |||
| General | |||
| Type | P-286C | ||
| Equipment Name | LTE Public Network Digital Walkie Talkies | ||
| Working Voltage | DC:3.4V-4.2V; Typical Value:3.7V | ||
| Network System | 4G | ||
| Frequency Range CAT.1 | ·LTE(FDD):1/2/3/4/5/7/8/20/28.LTE(TDD):34/38/39/40/41n Europe ·LTE(FD0):1/2/3/4/5/7/8/12/13/17·LTE(TDD):34/38/39/40/41n | ||
| Maximum Transmit Power | TDD-LTE Power Class 3(23 +/-2dBm) / FDD-LTE Power Class 3(23 +/-2dBm) | ||
| Stand-by Time | Typical Standby | ||
| Receiving Sensitivity | TDD-LTE -94 dBm(20MHZ) / FDD-LTE -94 dBm(20MHZ) | ||
| Rate Audio Power | 500mW | ||
| Battery | Polymer Lithium Battery 4200mA | ||
| Charge Mode | TYPE-C / Seat-charger (Optional) | ||
| Antenna | Built In FPC Antenna | ||
| Operating Temperature | -20℃ ~ +50℃ | ||
| Weight | 185g | ||
| Size: Length*Width*Thickness(mm) | 93*58*34(Without Antenna) | ||
| SIM Card | Micro SIM | ||
| GPS (Optional) | |||
| Frequency | 1575.42MHz | Tracking Sensitivity | -155dBm |
| Capture Sensitivity | -143dBm | First Positioning Time | Hot Start:4s |
| Capture Sensitivity | -143dBm | First Positioning Time | Cold Boot:55s |
| Refresh Rate | 2-4HZ | Antenna | Active Antenna |
| Power Consumption | 35mA | Check | Native Latitude And Longitude Display And Platform Scheduling Software |
| Main Function | |||
| 1.78-inch Color Screen | |||
| Weather Forecast | |||
| Dual SIM Single Standby.Auto/Manual Switch | |||
| Base Station Location | |||
| Polymer Lithium Battery | |||
| Recording | |||
| GPS(Optional) | |||
| Flashlight | |||
| Nationwide Intercom.Private call/Group Call/All Call | |||
| Platform System Upgrade | |||
| Ultra Long Standby Time | |||
| Multi-group Listening(This Feature Requires Consultation With The Platform Provider) | |||
| Multi-member Single Call(This Feature Requires Consultation With The Platform Provider) | |||
| Intercom Prompt Sound Switch | |||
| Key Lock | |||
| Battery Level Display/Low Battery Alert |

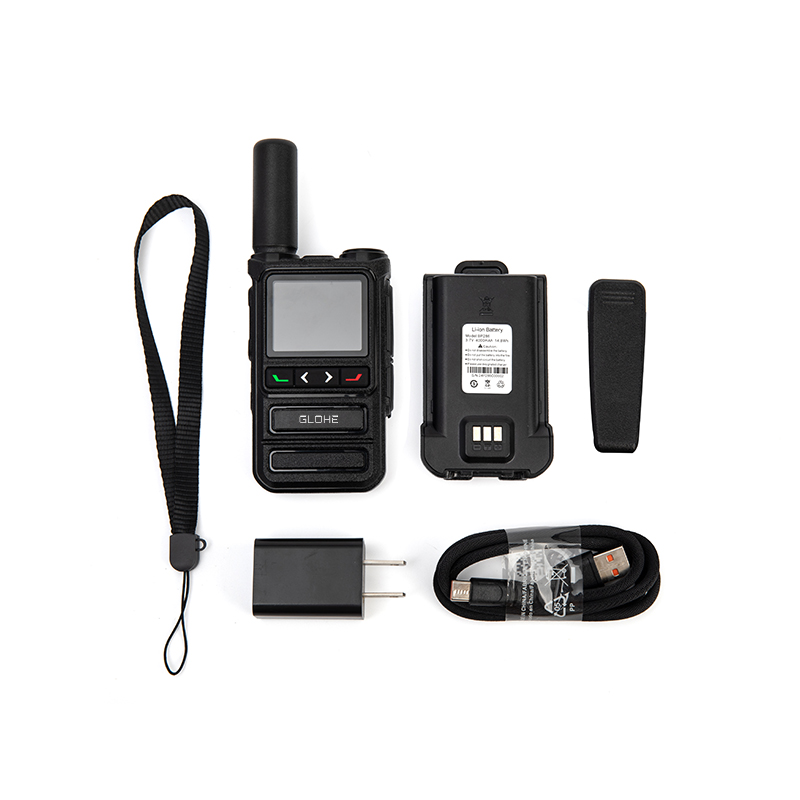

1 × Portable radio
1 × Antenna
1 × Li-ion battery pack
1 × Charger
1 ×Belt clip
1 ×The sling
Custom logo printing, private labeling, customized packaging, firmware development and OEM/ODM communication solutions are available for distributors and system integrators worldwide.
Custom product development with your branding, specifications, and packaging requirements.
Advanced digital encryption, noise cancellation, and energy-efficient radio technology.
Dedicated after-sales support with technical consultation and warranty service worldwide.
