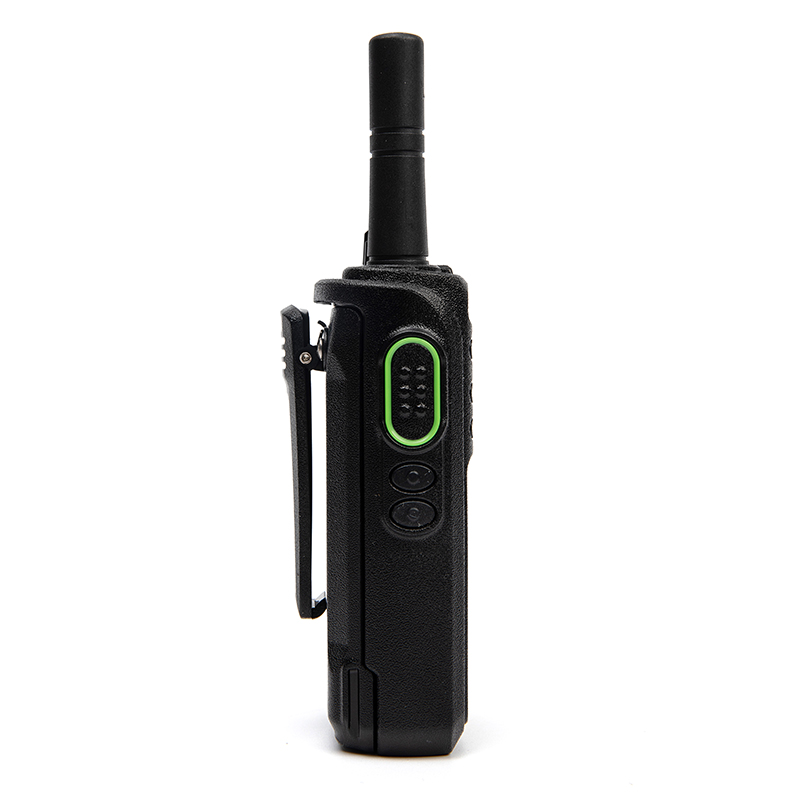

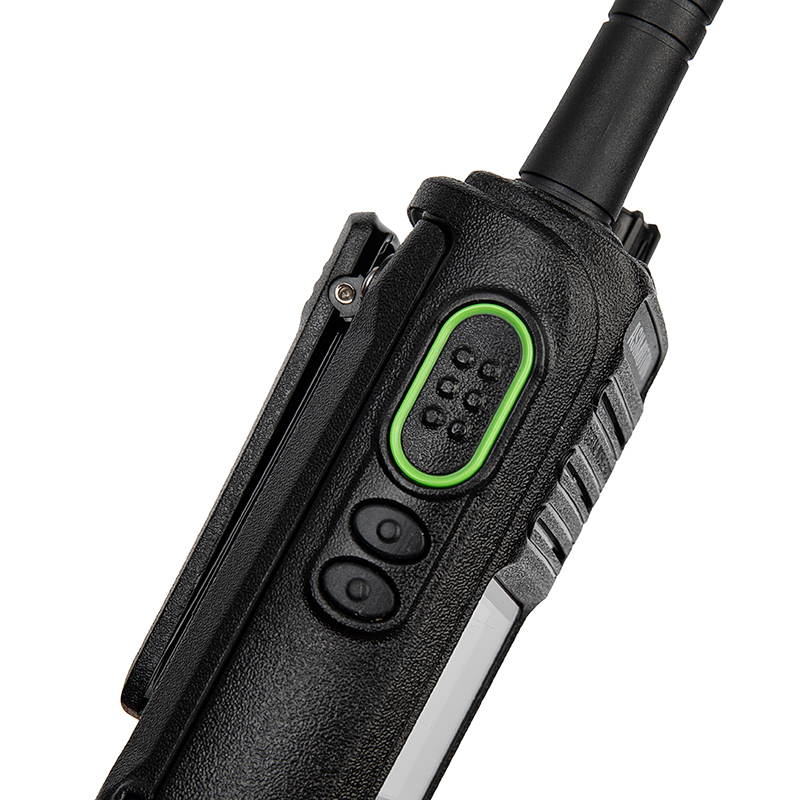

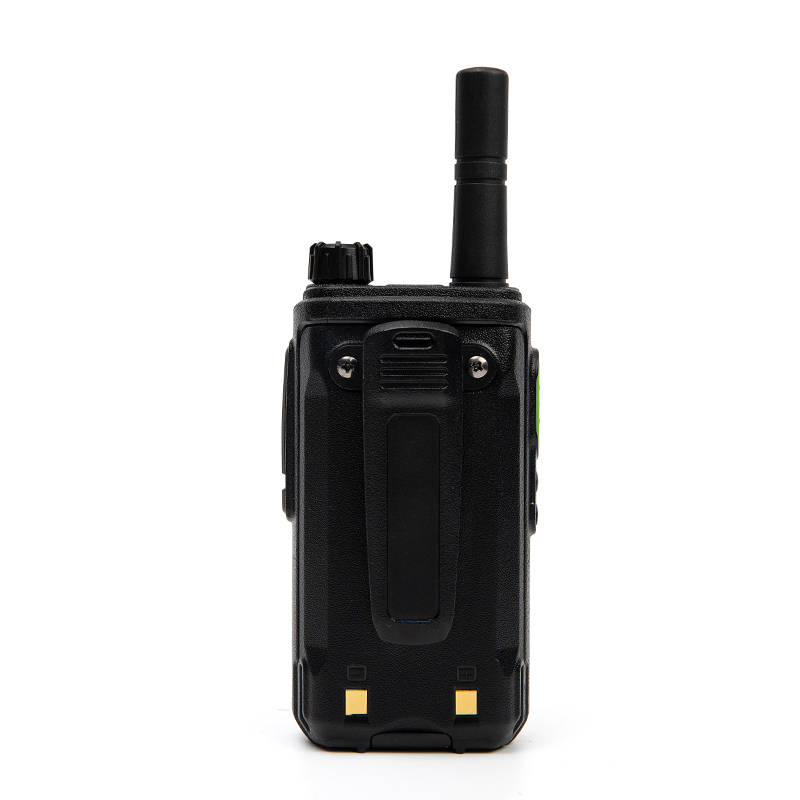

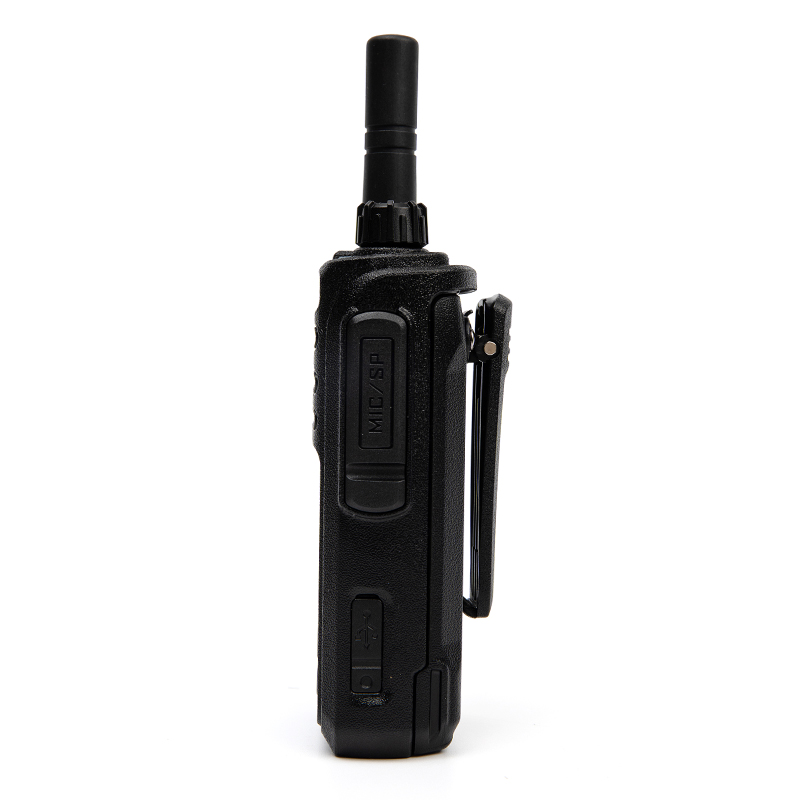

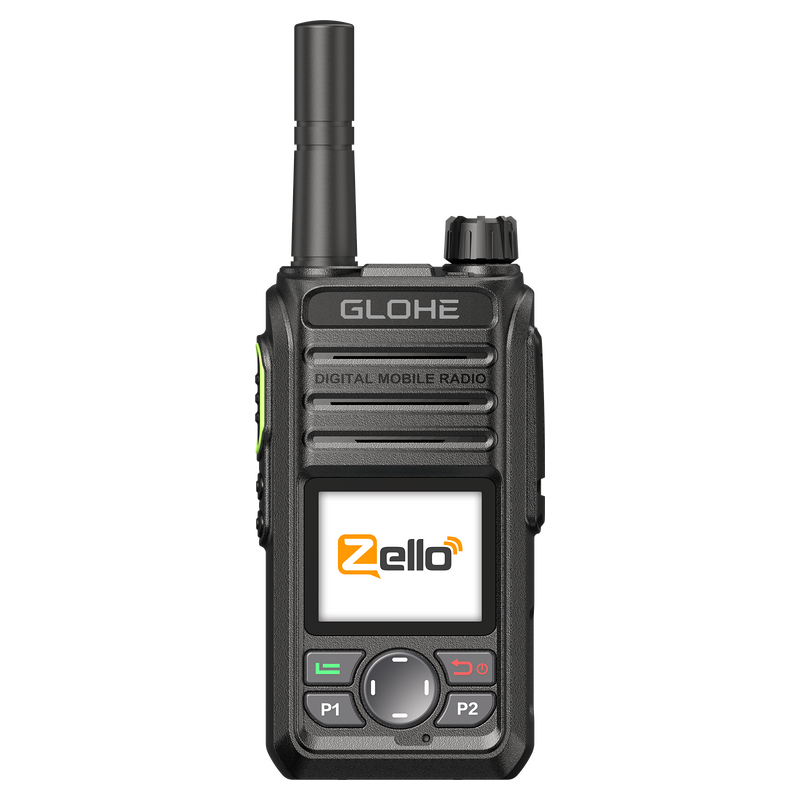

The P-367C is a high-capacity LTE PoC radio designed for users who require extended operating time and reliable nationwide communication. Featuring dual SIM support, optional GPS positioning and a 5000mAh battery, it is ideal for logistics, security and field operations.
| P-367C 4G CAT1 Technical Specification | |||
| Product Parameters | |||
| General | |||
| Type | P-367C | ||
| Equipment Name | LTE Public Network Digital Walkie Talkies | ||
| Working Voltage | DC:3.4V-4.2V,Typical Value: 3.8V | ||
| Network System | 4G | ||
| Frequency Range | America ·LTE(FDD):1/2/3/4/5/7/8/20/28.LTE(TDD):34/38/39/40/41n Europe ·LTE(FD0):1/2/3/4/5/7/8/12/13/17·LTE(TDD):34/38/39/40/41n | ||
| Maximum Transmit Power | Class 3 (23dBm±1dBm) for LTE | ||
| Stand-by Time | Typical Standby | ||
| Receiving Sensitivity | -106dBm | ||
| Battery | Standard Thick Battery: Polymer Lithium Battery 5000mAh (Optional Thin Battery 4000mAh) | ||

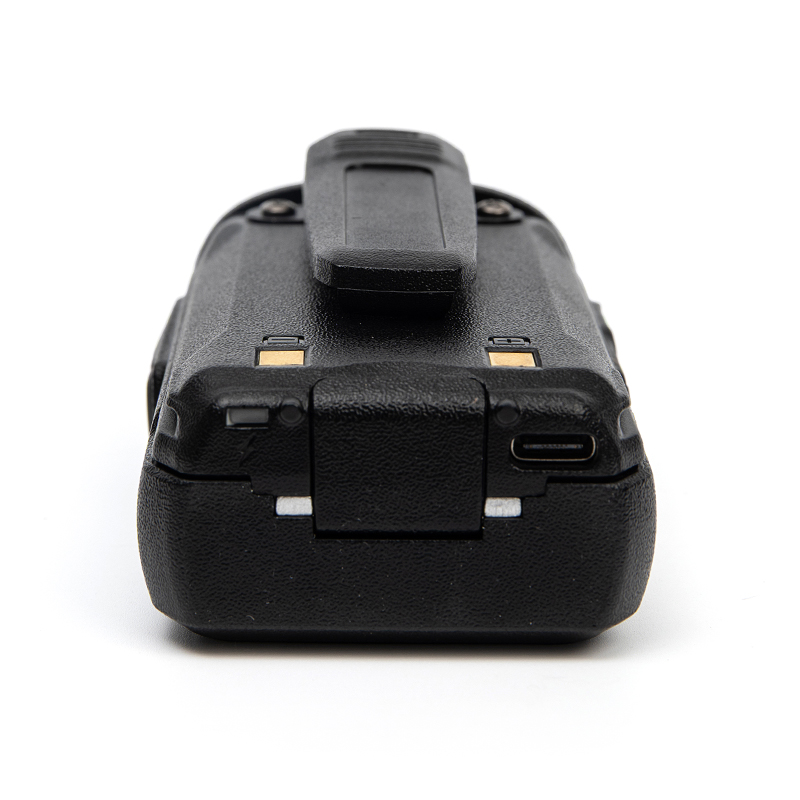

| Charge Mode | TYPE-C / Stand Charger (Optional) | ||
| Antenna | External SMA, PCB Antenna | ||
| Operating Temperature | -20℃ ~ +50℃ | ||
| Weight | 212g(Thin Battery) | ||
| Size: Length*Width*Thickness(mm) | 106*60*31(Thin Battery) | ||
| SIM Card | Micro SIM NanoSIM | ||
| GPS (Optional) | |||
| Frequency | 1575.42MHz | Tracking Sensitivity | -155dBm |
| Capture Sensitivity | -143dBm | First Positioning Time(Outdoors) | Hot Start:4s |
| Capture Sensitivity | -143dBm | First Positioning Time(Outdoors) | Cold Boot:55s |
| Refresh Rate | 2-4HZ | Antenna | Active Antenna |
| Power Consumption | 35mA | Check | Native Latitude And Longitude Display And Platform Scheduling Software |
| Main Function | |||
| 1.77-inch Color Screen | |||
| Polymer Lithium Battery | |||
| GPS(Optional) | |||
| Support Multi-platform Upgrade Switching | |||
| Dual Card Auto/Manual Switch | |||
| Intercom Prompt Sound Switch | |||
| Key Lock | |||
| Battery Level Display/Low Battery Alert | |||
| Native Platform Upgrade |

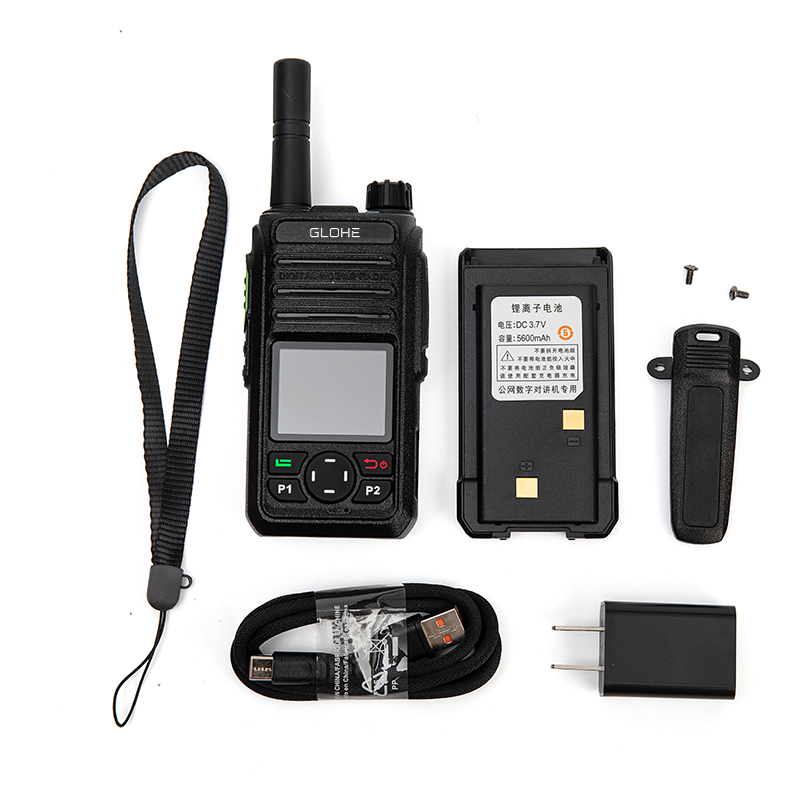

1 × Portable radio
1 × Antenna
1 × Li-ion battery pack
1 × Charger
1 ×Belt clip
1 ×The sling
